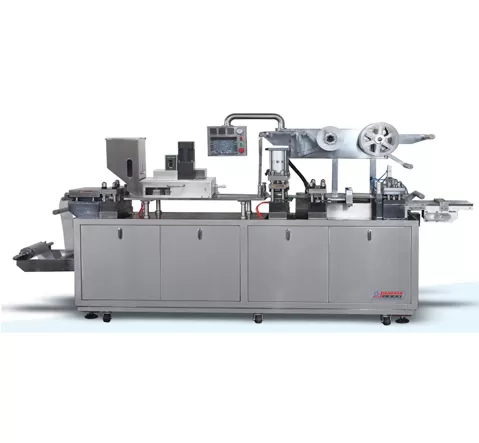

DPP-250 Al-Plastic (Al-Al) automatic blister packing machine is the improved equipment newly produced by our company. It adopts frequency conversion to adjust speed and control technology of integration of machinery, electricity, light and gas, and two items of patent technology. This series has been designed strictly according to GMP standard for medicine industry, which is in the leading position at domestic market. With its advanced properties, easy operation and high output, this machine is the most ideal packing equipment for large and medium sized pharmaceutical enterprises, health food and foodstuff trades. This product has passed the certification of EU.
Cutting Frequency (standard) | AL/AL: 15-25 times/min | |
AL/Plastic: 20-35 times/min | ||
Production Capacity | AL/AL: 75000 pc/h | |
AL/Plastic: 140000 pc/h | ||
Travel Range | 30-140 mm | |
Max. Forming Area | 240×130 mm | |
Max. Forming Depth | AL/AL: 18 mm | |
AL/Plastic: 25 mm | ||
Standard Sheet | 80×57×4 mm | |
Total power | 5.5 kW | |
Elec. Motor Power | 1.5 kW | |
Air Supply | ≥0.2 m³/min | |
Packaging Material (D×W) | PVC for medicine | 0.25×250 mm |
Aluminum foil for hot seal | 0.02×250 mm | |
Aluminum foil for forming in AL-AL packing | 0.16×250 mm | |
Overall Dimensions (L×W×H) | 3100×670×1650 mm | |
Weight | 1500 kg | |

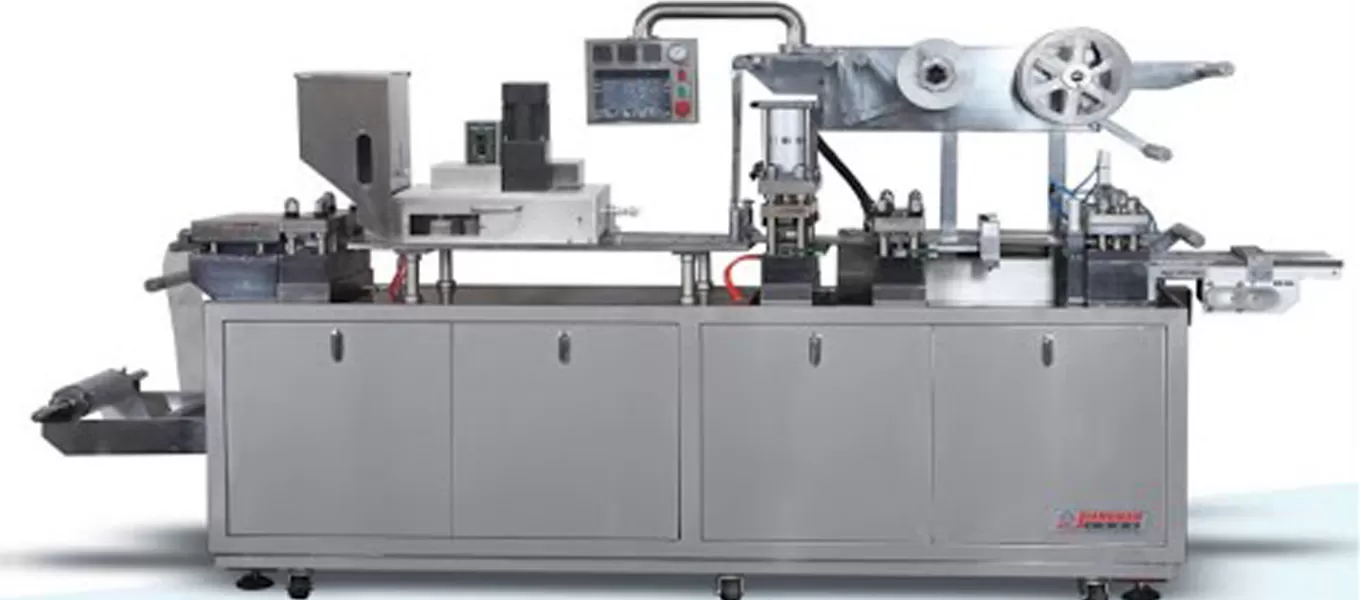

Frequency conversion to adjust speed, adjustable travel, touching -type heat, shaped with positive pressing, capsule turning heads, picture register, air washer heat seal, upper and lower net lines, punching without cross-ward waste edges;
Man-machine interface, sensor test with rejecting device;
Adopt hand-wheel to adjust the shaping position, creasing position and punching position;
Modules are fixed with fix pin, registering accurately and changing modules more easy;
It is also used to fill many kinds of medicines and all sorts of special-shaped materials in one plate;
Adopt stainless steel and nonpoisonous material to make all the parts which are to touch medicines, meeting the requirements of GMP.
