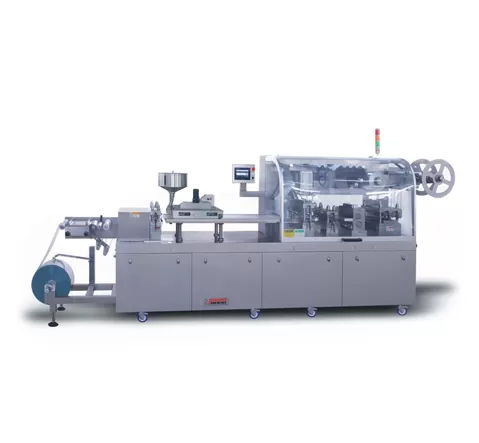

DPP-260H/K Aluminum Plastic/Duralumin Blister Packing Machine, featuring advanced performance, simple operation, and high output, stands as the latest improved equipment developed by our company.
This innovative machine incorporates cutting-edge technology to deliver exceptional efficiency, reliability, and ease of use, making it suitable for continuous high-volume production environments. With its intuitive controls and robust design, operators can achieve rapid setup and consistent results with minimal downtime. Specifically engineered for demanding applications, it is the best ideal packing equipment for large and medium-sized pharmaceutical plants, health care factories, and food industries, ensuring precise packaging, enhanced product safety, and compliance with stringent industry standards. Its versatility also extends to other sectors requiring durable and hygienic blister packaging solutions.
Model | DPP-260K | DPP-260H |
Cutting Frequency | AL/Plastic: 20-80 times/min | AL/Plastic: 20-60 times/min |
Al/AI: 15-30 times/min | ||
Max. Forming Depth | AL/Plastic: 25mm Al/AI: 18mm (made to order) | |
Stroke Range | 30-120 mm (made to order 30-140 mm) | |
Clean Compressed Air Pressure | 0.6-0.8Mpa | |
Air Consumption | 0.25-0.5m³/min (air compressor prepared by user) | |
Power Supply | 380V 50HZ 10kW | |
Dimensions | 4775×760×1620cm (detachable) | |
Weight | 2088kg | |

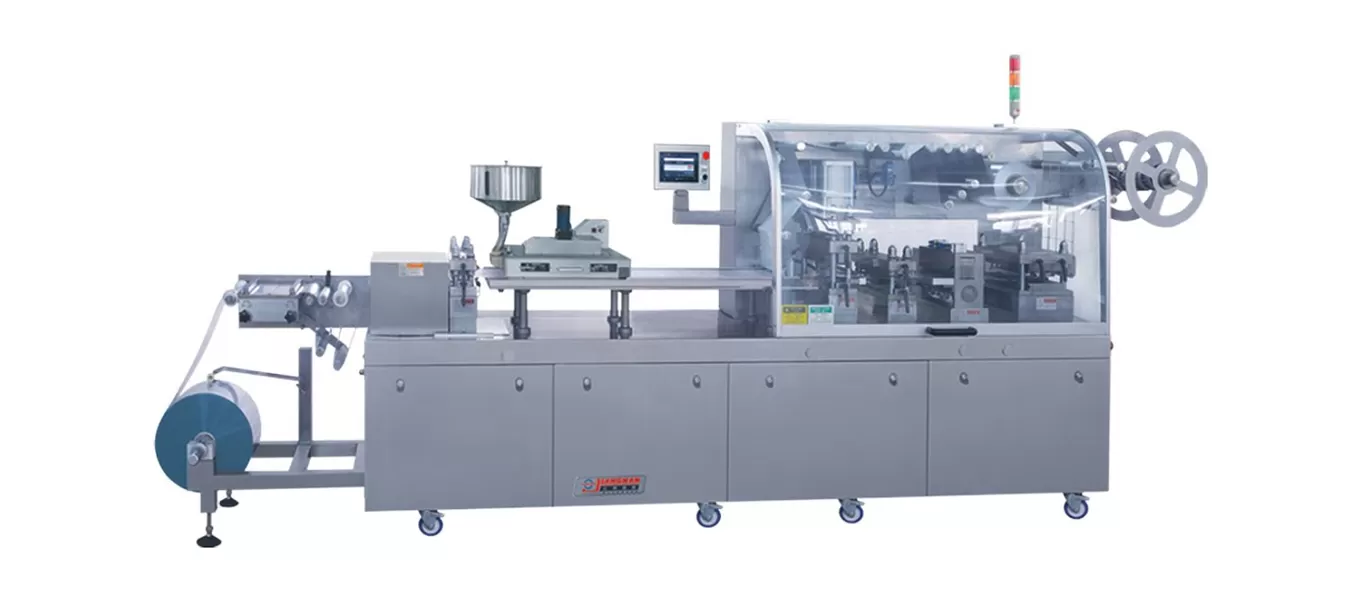

Adopts top brand PLC controller with touch screen displayed in Chinese and English, Frequency inverter for speed control, servo traction, which can ensure the length of blister traction adjustable within the range.
With thermal temperature control and test, main machine over loading protect, PVC and PTP packing material position test, feeder material position test, failure automatic debug and alarm, automatic protection and stop running.
The machine station module type design of level frame, good sight, safe and convenient operation.

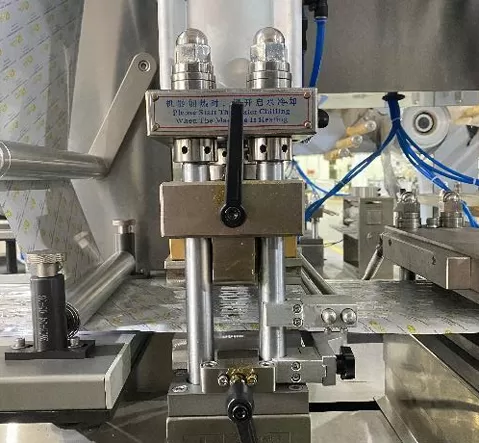

Thermal with contact type, positive press formed, air cushion thermal seal upper and lower net, photo register make your product package better.

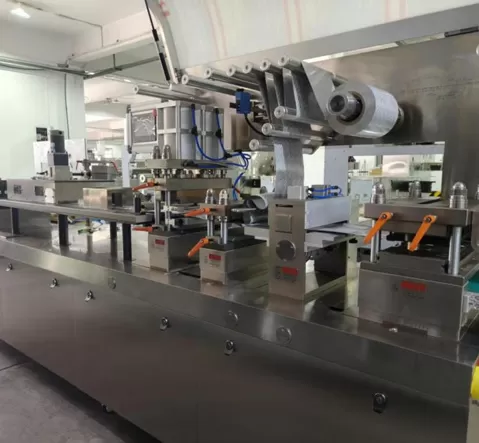

The special design of molds in rectangle shape, ladder type fixing, provide much convenience and easy to molds replacement. All material contact parts adopt high quality stainless steel and aluminum metal, slap-up surface treatment craft.
Discharging finished product in right order, automatic collection of bad products, auto rewinding of strap material to ensure easy collection.

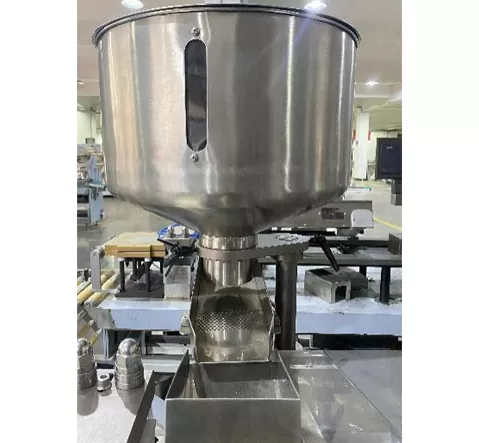

Feeding efficiently, reliable and suitable for many kinds type arrange and irregular feeding, (according to actual product design fit feeder)
The machine has been designed into separated body, which is easily move into lifts or workshops.
