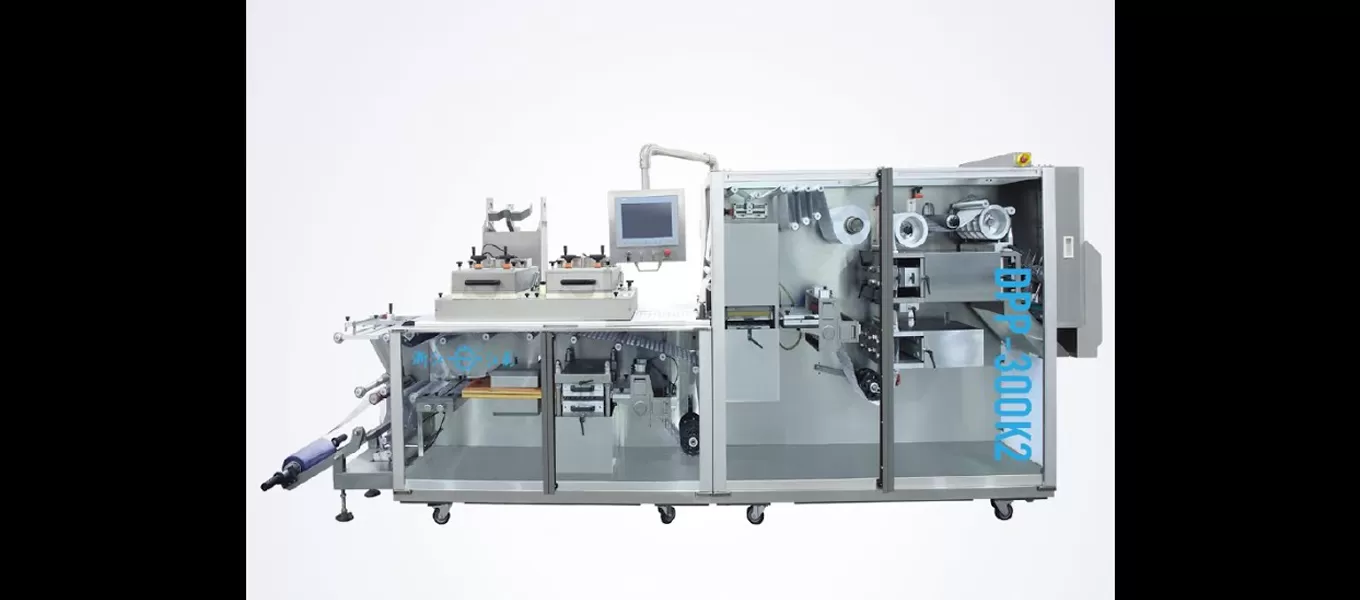

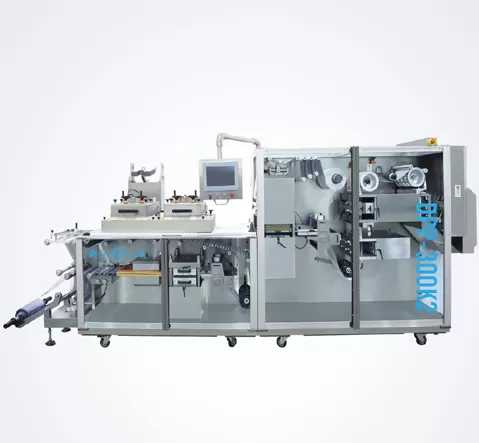

The DPP-300KII High Speed Aluminum Plastic/Duralumin Packing Machine features advanced performance, simple operation, and high output capabilities, making it the latest improved equipment in our company. This machine boasts exceptional production efficiency and substantial capacity, handling demanding workloads with ease. It serves as the ideal packing solution for large and medium-sized pharmaceutical plants, health care factories, and food industries, delivering reliable and consistent results. Because its innovative packaging technology effectively blocks bacteria and oxygen in the air, it safeguards the freshness and integrity of drug containers, ensuring product safety. Consequently, this machine has gained widespread adoption across various sectors for its robust performance and user-friendly design.
Item | Technical Parameters | |
Max. Punching Speed | AL/PVC: Around 30-130 punch/min. AL/AL: Around 20-50 Punch/min Before order the machine, please provide your sample to us to confirm in advance. | |
Max. Forming area | 200X300X15mm（AL/PVC） 200X300X12mm（AL/AL） | |
Travel scope | 30-120mm | |
Blister size | Standard | 57 X 80mm |
Power Supply | 380V 50Hz | |
Total Power | 19kw | |
Main Motor Power | 2.2kw, total two pieces, so total power is 4.4kw | |
Pulling motor power | 2.1kw | |
Upper heating Power | 3.2kw | |
Lower heating power | 3.2kw | |
Heat sealing power | 3.5kw | |
Batch Code heating power | 2kw | |
Air Pump volume | ≥0.4m³/min（Self-prepared） Pressure：0.6～0.8Mpa | |
Mould cooling | Tap water or Recycled water Consumption： 100-150L/h | |
Noise | ≤85db(A) | |
Machine size（L x W x H） | 5835X800X1752 mm(Can be separate packing) | |
Main machine weight | About 3660kg | |
Base material automatic feeding function, no need manual lifting
Fast PVC splicing platform, one-key substrate positioning function
Substrate intelligent buffer device to minimize the tensile shrinkage of packaging materials

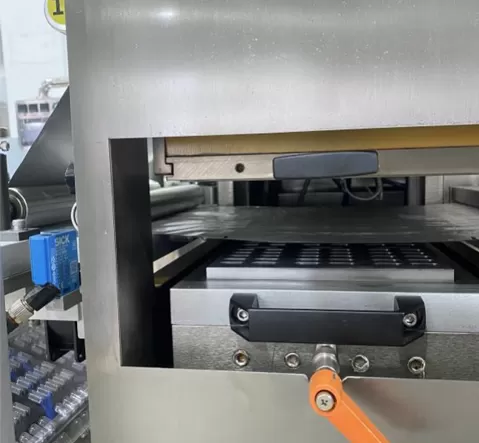

Quick replacement of pull type mold, with one-time positioning function
Double wheel high-precision servo pulling film
Arc arrangement of tensioning roller, so that the packaging material is less easy to fall
Finished product output, waste collection, rejection of unqualified products
With the base material exhaustion alarm, main drive overload alarm, cover material exhaustion alarm, insufficient air pressure alarm, safety door opening alarm, substrate fragmentation alarm, the temperature too high alarm during automatic operation mode , temperature too low alarm during automatic operation mode , equipment operation warning, traction motor fault alarm
The machine has been designed into separated body, which is easily move into lifts or workshops.
