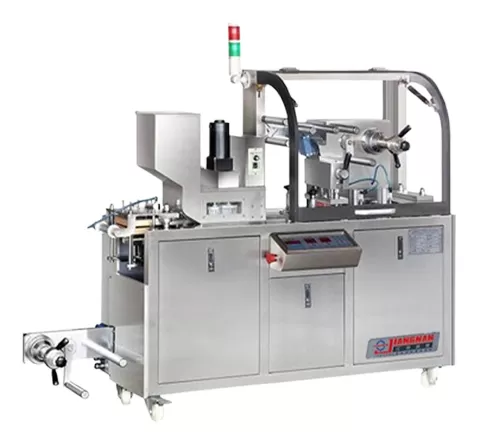

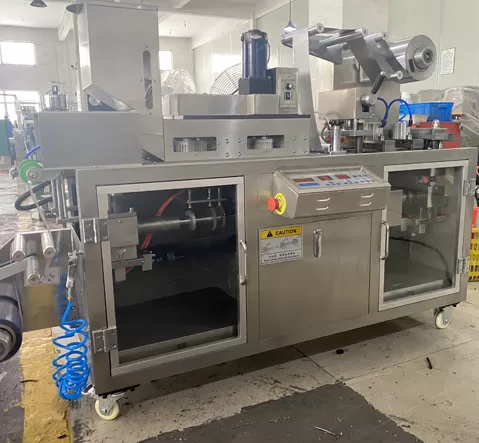

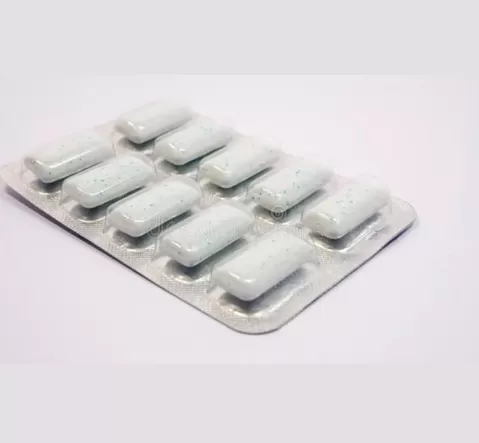

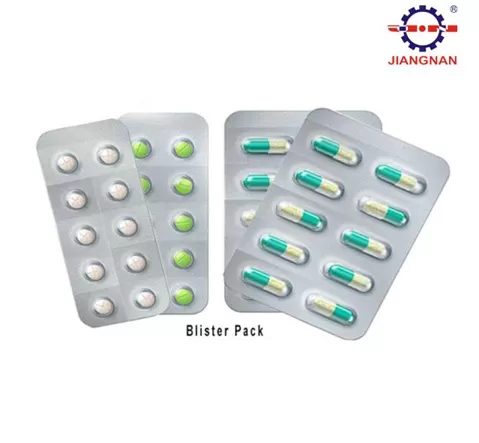

Designed for packaging capsules, pills, tablets, health care products, candies, hardware, and diverse other items, the DPP-80 AL-PVC or AL-AL blister packaging machine finds widespread application in small pharmaceutical factories, hospital preparation rooms, drug research institutes, and small pilot plants.
Featuring a robust plate structure, this AL-PVC or AL-AL blister packaging machine incorporates a helical gear reducer, ensuring exceptionally stable operation, minimal noise, and an extended service life. Plate size is easily customized, enabling the packaging of items in virtually any shape, including unconventional geometries like elliptical, triangular, or square. Furthermore, the machine boasts intuitive operation and hassle-free maintenance.
Cutting Frequency | 10-30 times/min |
Max. Forming Areas | 105×70mm |
Travel Range | 20-110mm (can be manufactured as user's requirements) |
Standard Sheet | 80×57mm (can be manufactured as user's requirements) |
Air Pressure | 0.4-0.6Mpa |
Total Power | 380V/220V 50Hz 2.8kW |
Main Motor Power | 0.75 |
PVC Hard Pieces | 0.15-0.5×110mm |
PTP Aluminum Foil | 0.02-0.035×110mm |
Dialysis Paper | 50-100g×110mm |
Mould Cooling | Tap Water or Back Water |
Overall Dimensions | 1840×590×1100mm |
Weight | 350kg |
It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement.
It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
The machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for packing.
