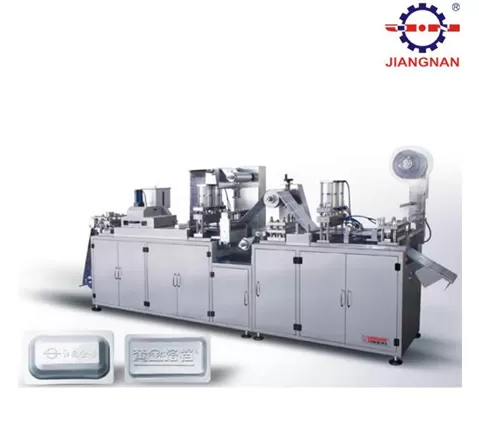

Harnessing cutting-edge domestic and international technologies, the DPP-260H2 AL-PVC-AL blister packaging machine expertly handles three distinct packaging formats: AL-PVC, AL-AL, and AL-PVC-AL. This versatility grants the machine exceptionally broad application potential.

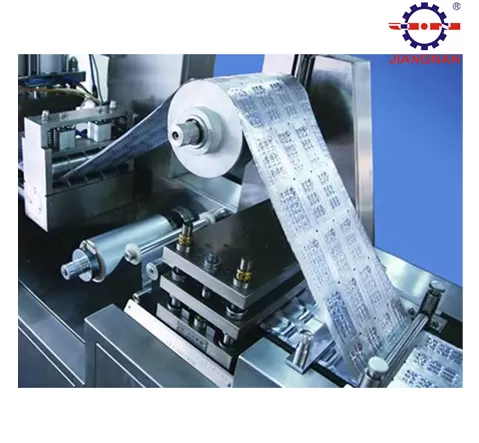

This advanced blister packaging machine integrates a premium imported variable frequency governor alongside the latest domestic high-power transmission mechanism. Its multi-row chain-driven main axle eliminates the errors and noise inherent in traditional gear transmissions. Adopting a sophisticated photoelectric control system, the machine is equipped with dedicated PVC, PTP, and tropical aluminum feeding units, plus an automatic scrap rewinding unit. This ensures unwavering synchronization stability across ultra-long distances and multiple positions.
Productivity | 40000-400000 pcs/h |
Punching frequency | 15-40 times/min |
Stroke adjustable range | 40-130mm |
Max. forming area and depth of PVC | 240×120×18mm |
Width of wrapper | Tropic Aluminum: 250mm Aluminum foil: 250mm |
Max. forming area and depth of tropic Aluminum | 220×110×20mm |
Heating plate power | 2kw (Upper), 2kw (Lower) |
Heat sealing power of AL-PL | 1.5kw |
Power of stepper motor | 1kw |
Power of main motor | 2.2kw |
Heat sealing power of tropic aluminum | 3kw |
Volume flow of air compressor | ≥0.6m² /min (self prepared) |
Overall dimensions | 395×760×1820mm |
Size of encasement | 1550×760×1820mm |
Weight | 1800kg |

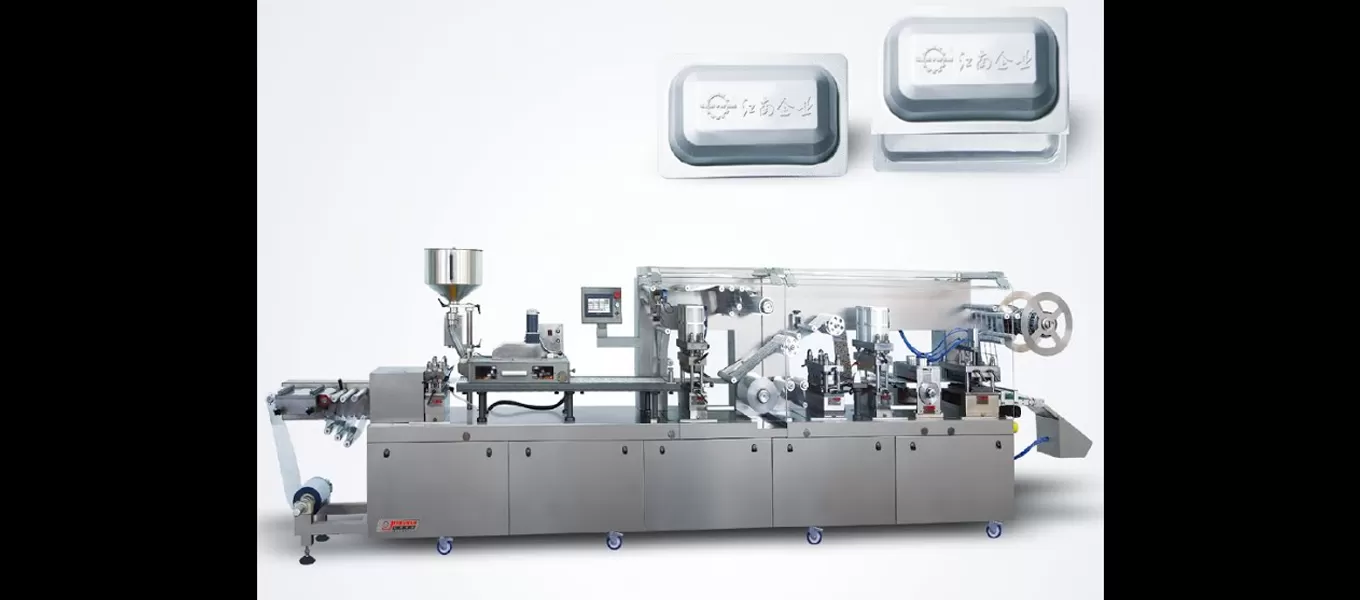

Mould adopt keyway positioning, pressing plate clamping.
Closed and open of forming heating boarding in auto, it can delay to start the machine when closed the forming heating broad, in order to limit the waste material in one board.
Air cushion heating sealing: chequered plate has goes up by cylinder in auto when stop the machine. It eliminate the deformations of blister by heat radiation when stop the machine, easy to clean the chequered plate and cushioning the over pressure, which prolong the machine’s life.
Up and down chequered board mating to heating sealing, it means that pros and cons of chequered board are point sealing chequered ( also can line sealing),owing to the stress in even, it can make the board more smooth and improve the performance of sealing.
Auto alarm and stop to run when PVC is lack and fragment and match with urgent safe device, improve the operation safely when adjust and change the mould.
