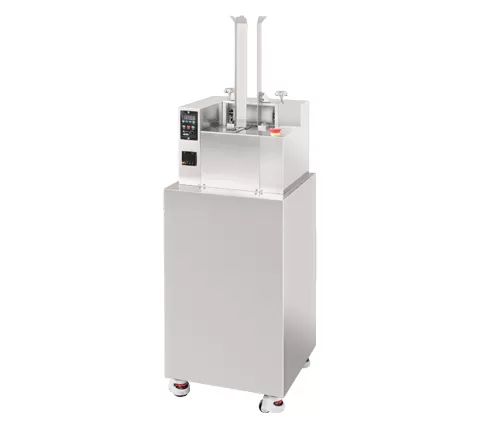

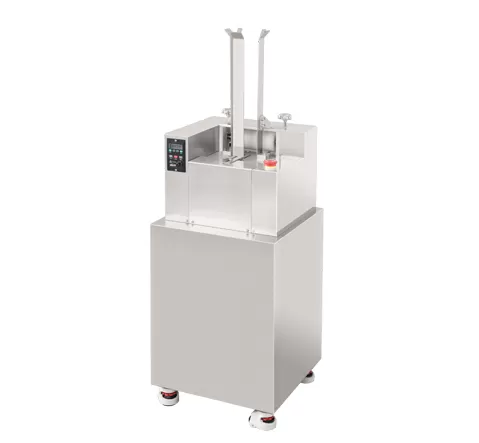

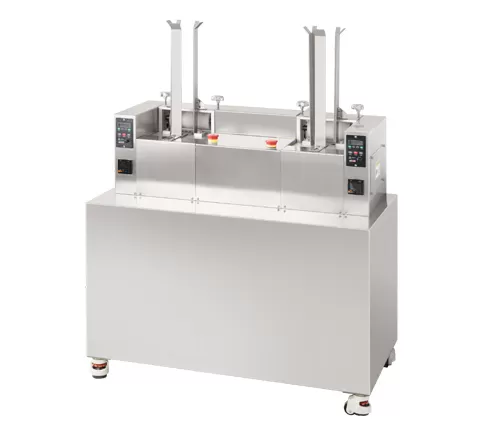

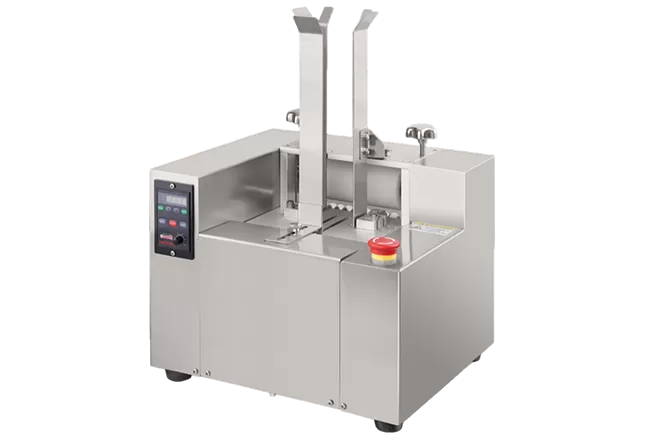

The aluminum-plastic de-blister machine is an automatic machine for recovering medicines from defective aluminum-plastic blisters. The machine through a micro motor combined with a reducer, drives a set of rollers that simulate the manual action of peeling off tablets/capsules, stripping the tablets/capsules from the defective blisters. The tablets/capsules are separated and collected from the blister through guide plates and pellet-blocking rubber plates. It complies with the process quality standards of the 2015 Edition of the Chinese Pharmacopoeia, and the system itself conforms to the latest version of GMP in China.
Model | PY-80 | PY-120 | PY-120A | PY-130 | PY-160 |
Work Mode | semi-automation | full-automation | full-automation | full-automation | full-automation |
Counting Mode | Manual | Manual | Manual | Automation | Automation |
Work Efficiency | 25-35plate/min | 50-65 plate/min | 80-95plate/min | 100-120plate/min | 220-280plate/min |
Scope Of Application | Capsules, tablets, soft capsules, candy, etc. All aluminum plastic packaging | ||||
Applicable Medicine Plate | Can be arranged in any form | Should be arranged horizontally and vertically. | |||
Replacement Of Mould | No need of mould | ||||
Motor And Governor | Taizhou force TAILI | ||||
Power Requirement | 220V AC:50-60HZ | ||||
Power Rating | 60W | 60W | 180W | 180W | 360W |
Weight Of Equipment | 16KG | 25KG | 35KG | 38KG | 65KG |
Outline Dimension | 250*280*320mm | 310*350*510mm | 400*400*950mm | 400*400*1100mm | 900*500*1200mm |
Equipment Material | SS304 | ||||
