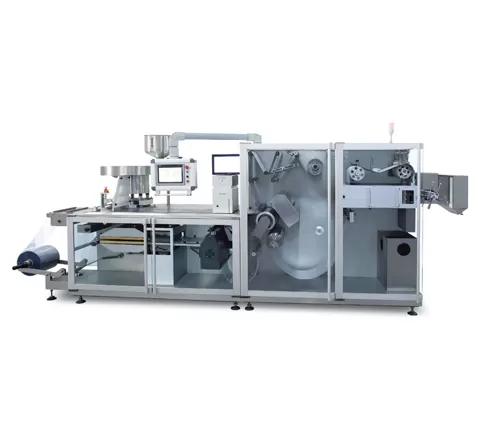

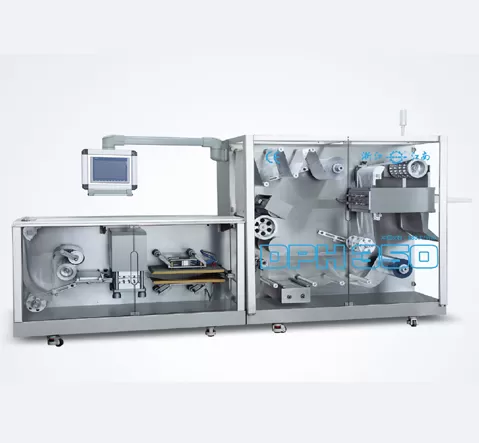

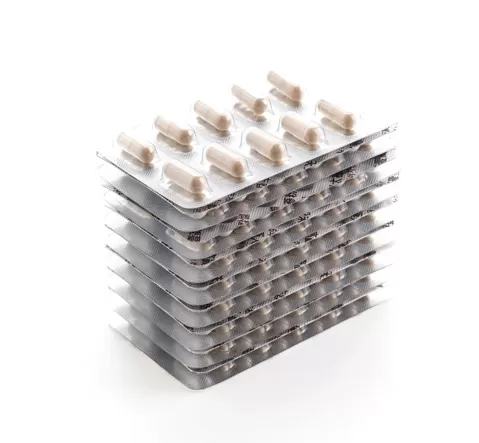

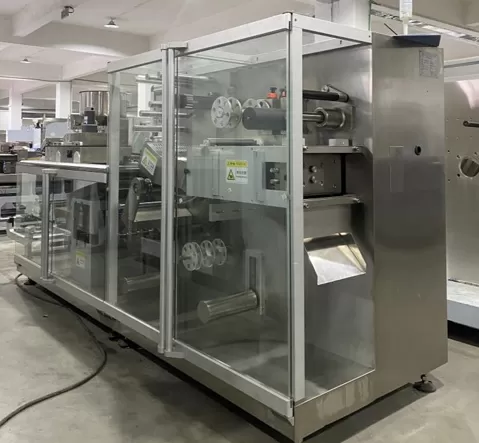

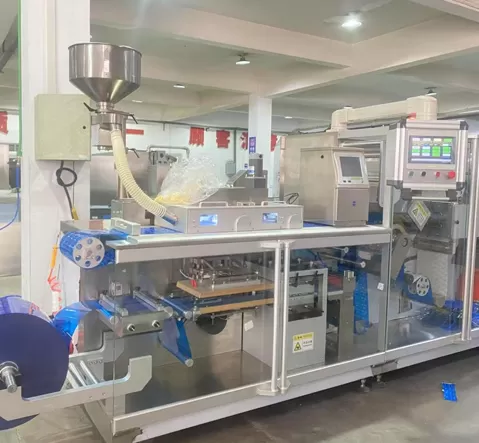

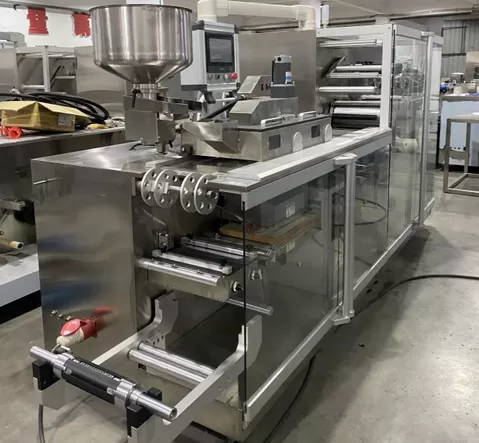

The DPH-260/350 high-speed roller plate blister packaging machine delivers outstanding versatility and efficiency, perfectly suited for packaging common pharmaceutical products like capsules and tablets. It also handles high-speed blister packaging of items such as milk tablet candies, buccal tablets, chewing gums, and chocolate beans with remarkable efficiency. Utilizing positive pressure forming, the machine crafts uniform, sturdy PVC blisters; its innovative roller design simultaneously guarantees a visually flawless and exceptionally reliable seal. The conveniently designed batch number area allows for effortless daily adjustments, upholding stringent quality standards while simplifying the workflow.
Model | DPH260 | DPH350 | |
Production Capacity | AL/plastic: 60-150/min AL/AL: 40-80/min | ||
Max. Line Speed of Packaging Material | 20m/min | 22m/min | |
Max. forming depth | 12mm | 12mm | |
Max. Forming Area | 260×250mm | 350X230mm | |
Max. Width of Packaging Material | 260mm | 350mm | |
Max. Feed (Stretching) Length | 250mm | 230mm | |
Max. Cutting Length | 120mm | 120mm | |
Power Supply | AC380V/3 phase /50Hz 18kW/h | AC380V/3 phase /50Hz 20kW/h | |
Air Supply | Pressure | 0.6 MPa | 0.6 MPa |
Air Consumption | < 12 m³/h | < 16 m³/h | |
Water Supply | Temperature | 15-18℃ | 15-18℃ |
Water Consumption | 0.08 m³/h | < 0.1 m³/h | |
Overall Dimensions(L×W×H) (Feeder Excluded) | 3860×1135×1725mm | 4600×1380×1930mm | |
Weight | About 3000kg | About 3500kg | |

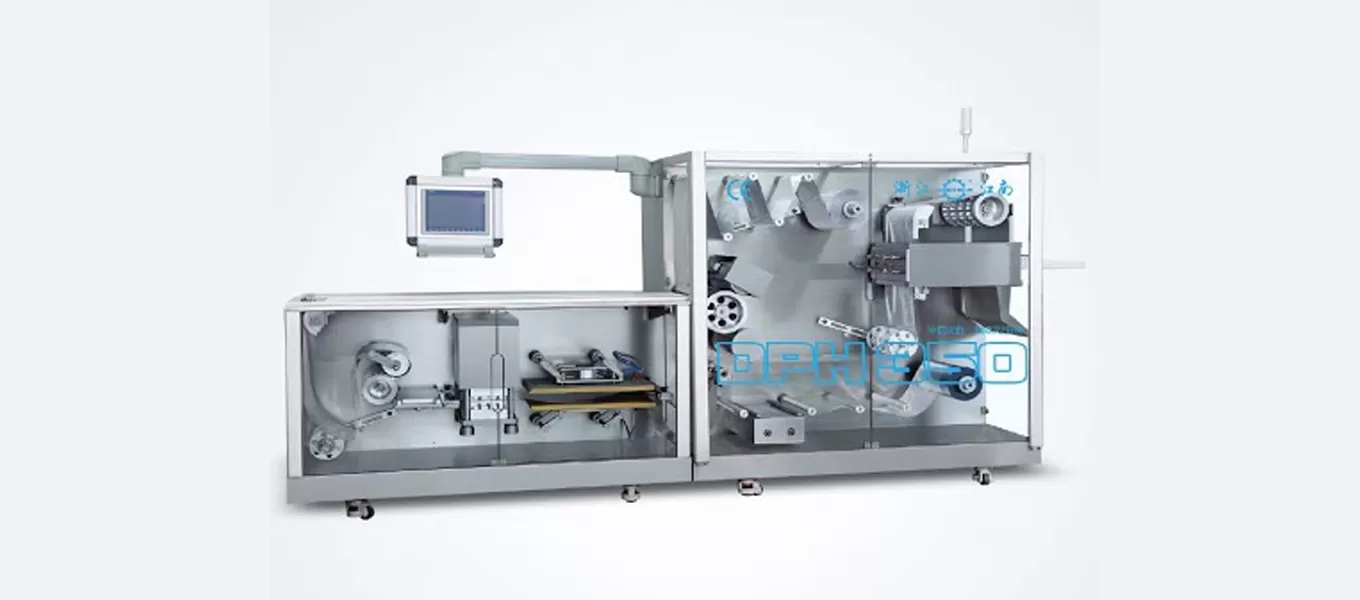

Servo traction control system is used to achieve stepless speed regulation, low noise, large transmission torque, stable and reliable operation;
The control system is stable, safe and reliable;
The spacing between molding, heat sealing, batch number, punching and other parts can be adjusted according to the change of the section;
Double servo traction, the stroke can be adjusted directly by entering parameters in the PLC according to the need;
The standard mold section is adopted, and the mold is easy to change.
