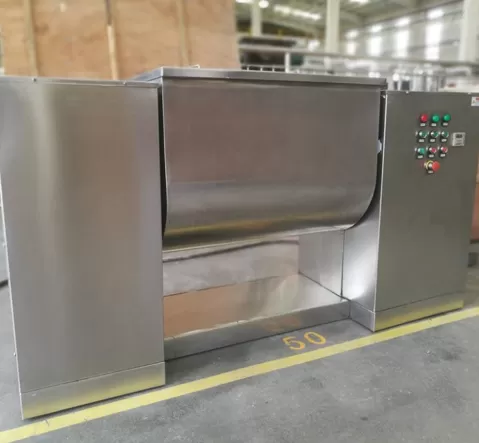

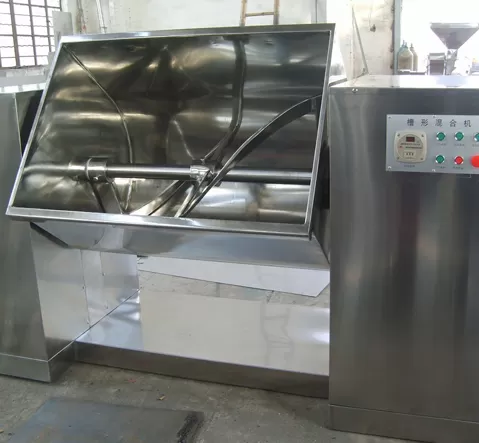

This machine functions through mechanical transmission, which causes the stirring paddle to rotate, thereby driving the material to turn to-and-fro for thorough agitation. After achieving even and consistent mixing, the binder is added to the blend, facilitating cohesion. Subsequently, the mixture is processed into the required damp material that conforms to the specifications for the next operational stage. Applied to industries of pharmaceutics, chemical and foodstuff, etc. It can mix powder or paste.
Model | Working Capacity(L) | Rotary speed of main shaft(r/min) | Motor Power(KW) | Material Pouring Motor Power(KW) | Machine Dimensions(mm) | Net Weight(kg) |
CH-50 | 50 | 24 | 1.1 | 0.55 | 1000×425×800 | 260 |
CH-100 | 100 | 24 | 2.2 | 0.75 | 1390×450×900 | 300 |
CH-200 | 200 | 24 | 4 | 0.75 | 1300×600×1190 | 850 |
CH-300 | 300 | 24 | 5.5 | 1.5 | 1900×680×1200 | 950 |
CH-400 | 400 | 20 | 7.5 | 1.5 | 2150×730×1220 | 1100 |
CH-500 | 500 | 20 | 7.5 | 1.5 | 1800×1100×1400 | 1100 |
CH-600 | 600 | 18 | 7.5 | 1.5 | 2000×1300×1600 | 1300 |
CH-800 | 800 | 16 | 11 | 3 | 2600×920×1700 | 1500 |
CH-1000 | 1000 | 14 | 13 | 3 | 2650×980×1850 | 1800 |
