The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
Model | 5 | 30 | 60 | 120 | 200 | 300 | 500 |
Capacity(Kg/Batch) | 5 | 30 | 60 | 120 | 200 | 300 | 500 |
Material Yield Rate(%) | >=99% | ||||||
Qualified Rate(%) | <=85% | ||||||
Container Volume(L) | 22 | 100 | 220 | 420 | 670 | 1000 | 1500 |
Diameter(mm) | 500 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 |
Powder of Fan(Kw) | 3 | 7.5 | 11 | 18.5 | 22 | 30 | 45 |
Liquid Feed Power(Mpa) | 0.37 | ||||||
Pressure of Steam(Mpa) | 0.4~0.6 | ||||||
Consumption Steam(Kg/h) | 18 | 60 | 120 | 140 | 180 | 310 | 400 |
Compress Air Pressure(Mpa) | 0.4~0.6 | ||||||
Consumption of Air(m3/min) | 0.3 | 0.9 | 0.9 | 0.9 | 1.1 | 1.1 | 1.5 |
Working Temperature C | Room Temperature~120C Adjustable | ||||||
Noisy(db) | Installed Separaterd With Fan <=75 | ||||||
By using powder granulation, to improve the liquidity and thinner dust.
By using powder granulation, to improve solubility property.
Mixing—granulation—drying can be finished in one device (one-step granulation)

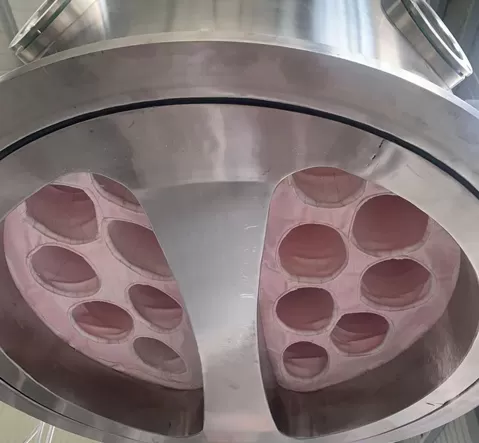

To adopt antistatic filtering mediums, to ensure safe operation.
Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.
No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.

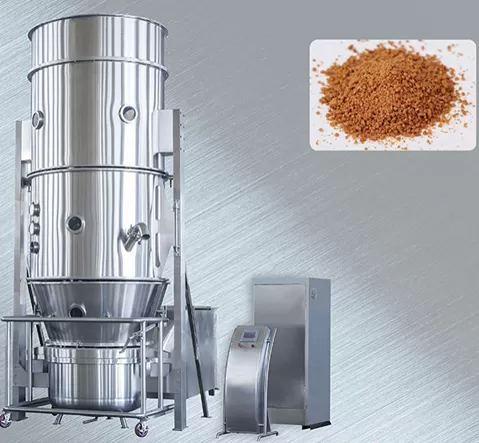

It integrates mixing, granulating and drying in one single vessel. Widely used in pharmaceutical, food and chemical industries for powder granulation to produce uniform dry granules for tablets and capsules.
It works for most powder raw materials with good fluidity. Common materials include herbal extracts, excipients such as lactose and starch, and various pharmaceutical powder blends. Materials that are extremely sticky or easy to agglomerate need formula adjustment before processing.
Standard fl series models adopt 304/316l stainless steel for material‑contact parts. The structure has no dead corners, easy disassembly for cleaning, meets gmp requirements for pharmaceutical production.
FL series covers lab small‑scale from several kilograms up to large‑production model of hundreds kilograms per batch. Actual effective loading depends on material bulk density.
