It finds application across diverse industries—including food, pharmaceuticals, cosmetics, pesticides, and more—for various bottle-shaped caps.

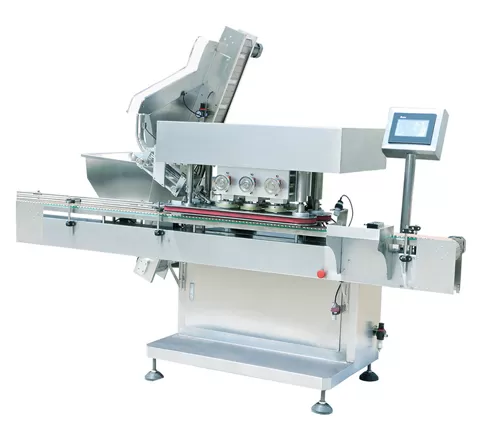

Once the bottle caps are neatly arranged by the cap neatening device, those with their mouths facing upward are conveyed to the caps collecting guideway. Meanwhile, bottles arriving from other equipment on the assembly line enter the caps collecting area. As the bottles advance, secured by the two-side clamping device, the caps are automatically aligned with them. The cap pressing device then presses the caps into a pre-tight position before the rotation process begins. Finally, under the action of three pairs of high-speed rotating wearable rubber wheels, the caps are securely tightened onto the bottles.
Technical Parameters | |
Suitable bottle type | round、oblate、square、flat square bottle |
Size range | Cap: diameter 30-70mm Bottle: diameter 30-90mm, height 45-170mm |
Capacity | 40-80 bottles/min |
Total power | 1.8 kw |
Voltage | 220V 50HZ |
Air pressure | 0.6Mpa |
Machine dimension | 1850*600*1560 mm |
Weight | 600KG |

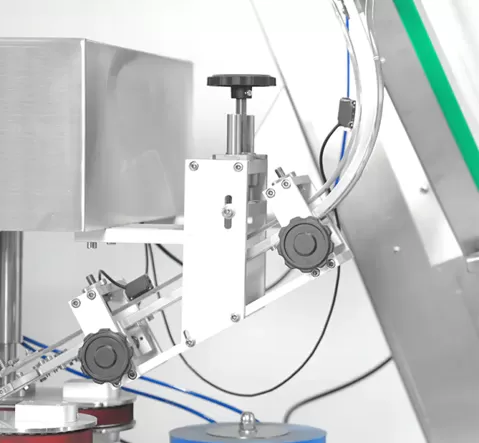

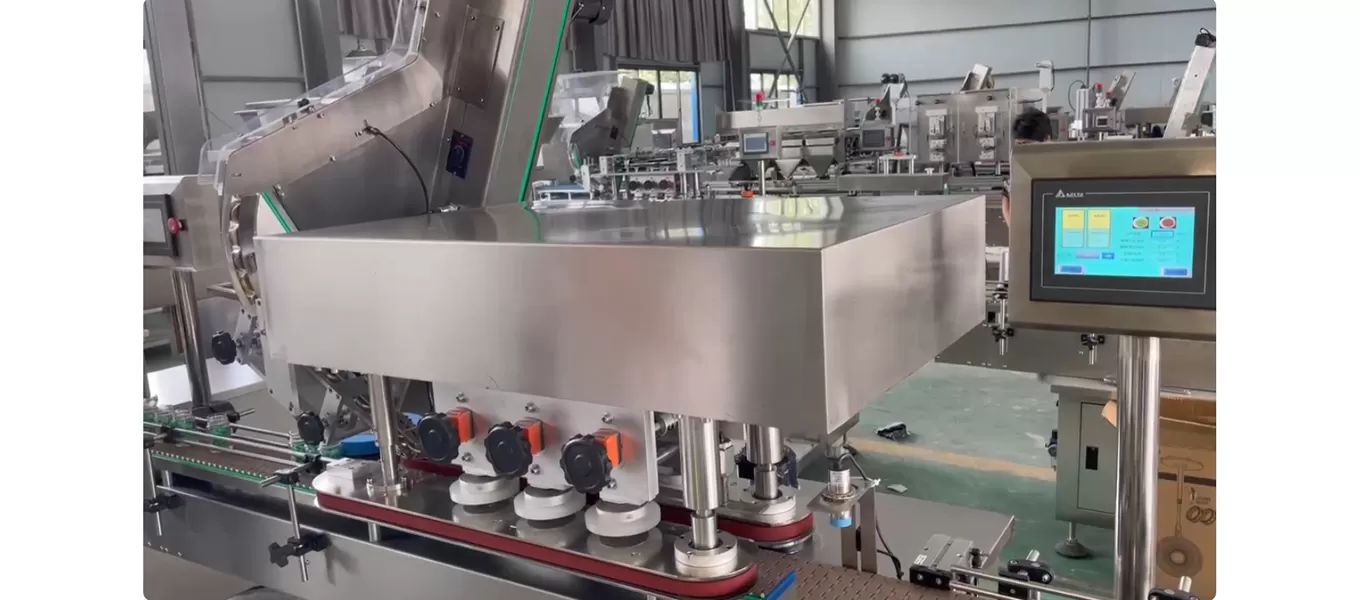

Featuring three pairs of friction wheels with self-adjusting tightness, this system ensures consistent and secure cap application.
Its broad applicability allows for simple and convenient bottle or cap changes, requiring only minor component adjustments.
Equipped with a human-machine interface and PLC control system, it guarantees stable operation and intuitive handling.
The machine includes self-diagnostic error detection, automatically halting and issuing alarms for faults, missing bottles, or missing caps. Bottles with twisted caps, anti-caps, or missing aluminum foil are reliably removed.
