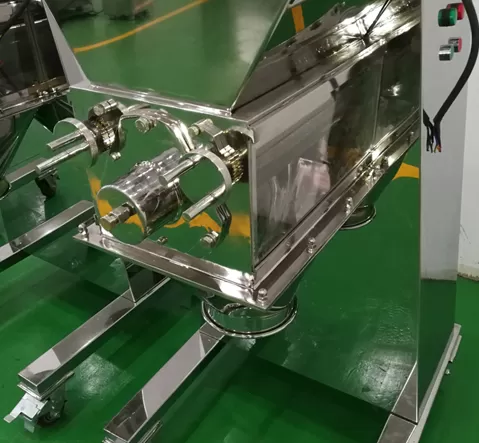

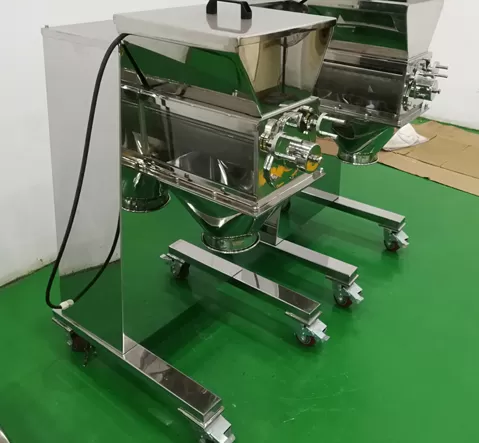

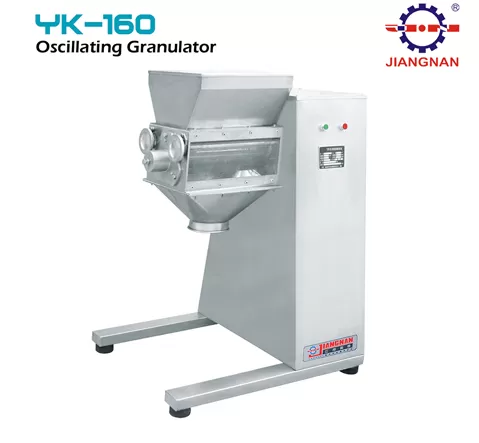

It is the special equipment that can make damp powder raw material pass through screen and granulate granule under the reaction of clockwise and counterclockwise rotating of cylinder.
It is mainly used for drying all kinds of granule of pharmaceutical industry, chemical industry, foodstuff industry and so on and pressing them into different products. The machine can also be used for crushing dry raw materials that have agglomerated.
Model | YK60 | YK90 | YK160 |
Capacity | 20~30kg/h | 50~100kg/h | 200~300kg/h |
Cycle Times | 46 time/min | 50 time/min | 55 time/min |
Feed Port | 209×212mm | 300×280mm | 408×380mm |
Motor | 0.55kW | 0.75kW | 2.2kW |
Diameter of Barrel | 60mm | 90mm | 160mm |
Oscillating angle | >360° | >360° | >360° |
Dimensions | 460×550×570mm | 460×750×840mm | 950×560×1240mm |
Weight | 55kg | 150kg | 360kg |
