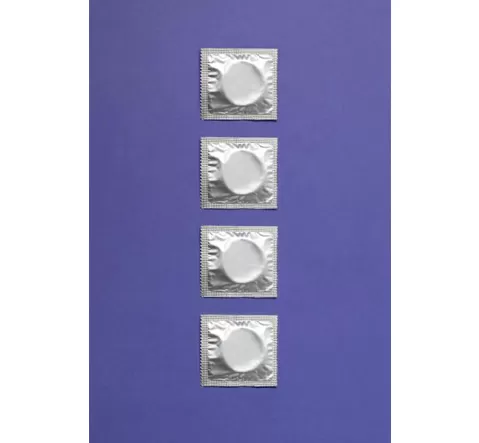

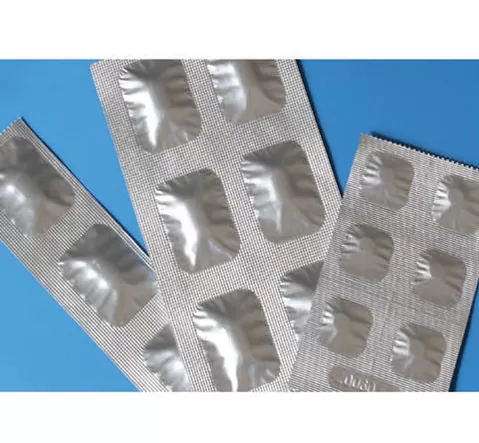

This machine excels in automatic aluminum-aluminum foil heat sealing for tablets, candy, and pills within the pharmaceutical, healthcare, chemical, and food industries.
It effectively seals packages to avoid light exposure and also handles plastic-plastic heat sealing applications. The machine seamlessly automates multiple functions: vibrating material feeding, broken piece filtering, precise counting, lengthways and transverse impressing, cutting margin scrap, and batch number printing.
Employing a sophisticated PLC programmable controller, frequency converter, and intuitive man-machine interface, operators can easily adjust cutting speed and travel range at random. It guarantees accurate feeding, airtight sealing, full-purpose operation, stable performance, and user-friendly control. This equipment significantly enhances product grade, extends product lifespan, and stands as the premier choice for pharmaceutical packaging needs.
Specs | SLB-220 | SLB-300 | SLB-400 | |
Rotate Speed of Drum (rpm) | 7-15 (stepless) | 7-14 (stepless) | ||
Production Capacity: pcs/h) | 20000-85000 | 20000-80000 | 20000-120000 | |
Packing Dimension (mm): Can Be Manufactured As User's Requirements | 220mm | 300mm | 400mm | |
Packing Material Specification (mm) | PVC for medicine | 0.05-0.1×220 | 0.05-0.1×300 | 0.05-0.1×400 |
AL-plastic combined film | 0.08-0.10×220 | 0.08-0.10×300 | 0.08-0.10×400 | |
Hole dia. of reel | 70-75 | |||
Electro Thermal Power | 380V/1.5kw×2 | 380V/1.2kw×2 | 380V/1.5kw×2 | |
Main Motor Power (kw) | 0.55 | 1.1 | 1.5 | |
Air Pressure (Mpa) | 0.4-0.6 | |||
Air Supply | ≥0.1m3/min | |||
Overall Dimension (mm) | 1450×670×1700mm (L×W×H) | 1500x850x1670mm ( L x W x H ) | 1500x950x1670mm ( L x W x H ) | |
Weight (kg) | 650 | 900 | 1000 | |

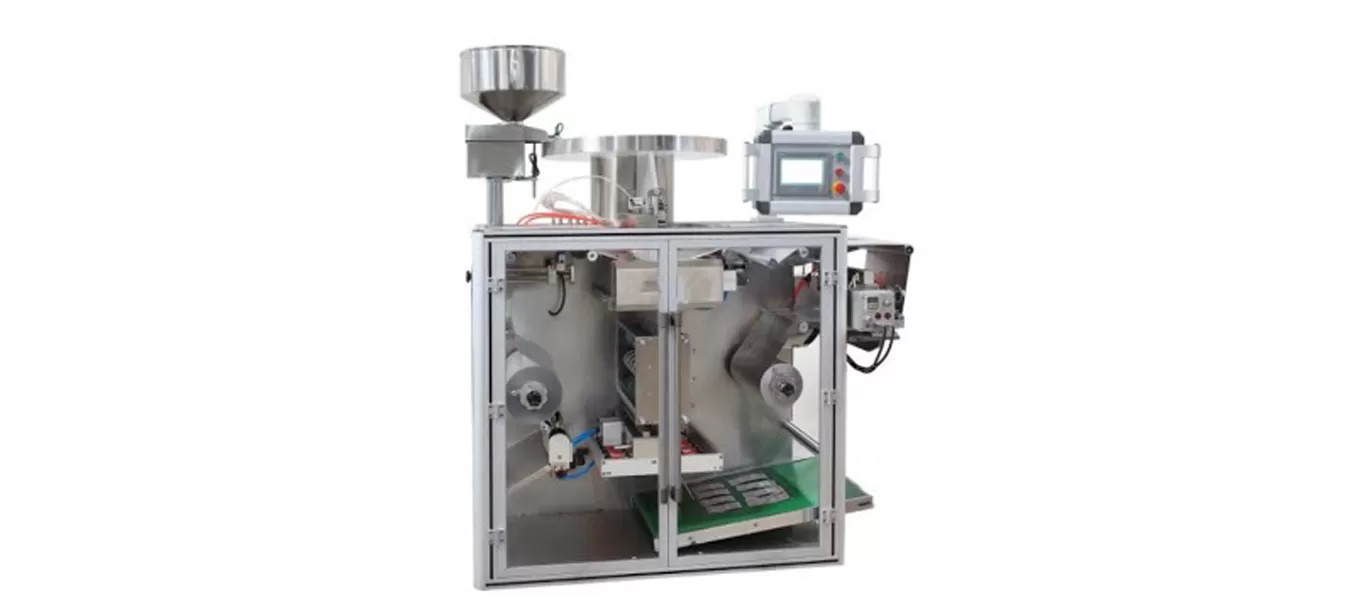

The heating roller is implanted directly by the heating coil, which has long service life and is convenient to dismantle and replace.
Heating roller is fixed by four axes, so the reticulate pattern will not be affected by the friction.
High temperature resistant axes are adopted near the press roll of the heat sealing mould.
Adopts the dedicated blade used in paper cutting machine, with a long service life, the blade cuts clearly and is applicable to various materials.
A set of traction device is added, improving the effect of longitudinal indentation.
