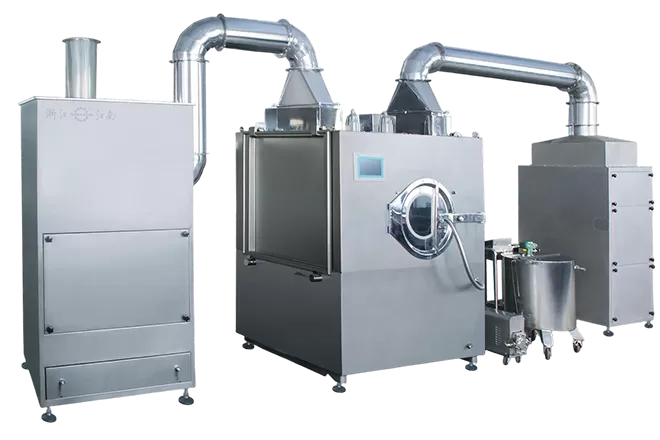

The efficient coating machine consists of major machine, slurry spraying system, hot-air cabinet, exhaust cabinet, feed and discharge device, and computer programming control system.
It can be widely used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film etc. In such fields as of pharmaceutical, food and biological products etc. And it has such characteristics as good appearance in design, high efficiency, low energy consumption and small floor area, etc.
Model | BG1000E | BG600E | BG400E | BG260E | BG150E | BG80E | BG40E | BG10E | |
Load capacity | 1000L | 600L | 400L | 260L | 150L | 80L | 40L | 10L | |
Rotation speed of coating pan (R/M) | 0-12RPM | 1-12RPM | 1-13RPM | 1-16RPM | 1-16RPM | 1-19RPM | 1-21RPM | 1-25RPM | |
Power of main machine | 7.5kw | 5.5kw | 3kw | 2.2kw | 2.2kw | 1.5kw | 1.1kw | 0.55kw | |
Diameter of coating pan | Φ1580mm | Φ1580mm | Φ1580mm | Φ1360mm | Φ1200mm | Φ930mm | Φ750mm | Φ500mm | |
Motor of air exhaust cabinet | 22kw | 11kw | 7.5kw | 5.5kw | 5.5kw | 3kw | 2.2kw | 0.75kw | |
Air exhaust flow | 20000m^3/h | 15450m^3/h | 10000m^3/h | 7419m^3/h | 7419m^3/h | 5268m^3/h | 3517m^3/h | 1285m^3/h | |
Motor power of hot air cabinet | 7.5kw | 5.5kw | 3kw | 2.2kw | 1.5kw | 1.1kw | 0.75kw | 0.37kw | |
Hot air motor air flow | 10000m^3/h | 7419m^3/h | 5200m^3/h | 3517m^3/h | 2356m^3/h | 1685m^3/h | 1285m^3/h | 816m^3/h | |
Weight of main machine | 4000kg | 2800kg | 1562kg | 1300kg | 1020kg | 684kg | 500kg | 200kg | |
Clean air | Pressure | >=0.4Mpa | >=0.4Mpa | >=0.4Mpa | >=0.4Mpa | >=0.4Mpa | >=0.4Mpa | >=0.4Mpa | >=0.4Mpa |
Air comsumption | 3.5m^3/min | 2m^3/min | 1.5m^3/min | 1.2m^3/min | 1m^3/min | 0.4m^3/min | 0.4m^3/min | 0.3m^3/min | |
Machine dimension | Main machine | 2500*3100*2800mm | 2000*2277*2660mm | 2000*1670*2660mm | 1730*1440*2470mm | 1570*1260*2250mm | 1210*1000*1900m | 1000*800*1900mm | 900*620*1800mm |
Hot air cabinet | 1700*1200*2600mm | 1600*1100*2350mm | 1000*900*2300mm | 1000*900*2300mm | 1000*900*2300mm | 900*800*2050mm | 900*800*2050mm | 800*650*1600mm | |
Air exhaust cabinet | 3000*1115*2400mm | 1050*1000*2470mm | 1050*1050*2330mm | 1050*1050*2330mm | 950*950*2245mm | 900*820*2130mm | 820*720*1750mm | ||
Steam heating power | 40Kw | 29Kw | 18Kw | 14Kw | 14Kw | 10Kw | 9Kw | ||
Electric heating power | 120Kw | 79Kw | 61Kw | 48Kw | 42Kw | 30Kw | 24Kw | 12Kw | |

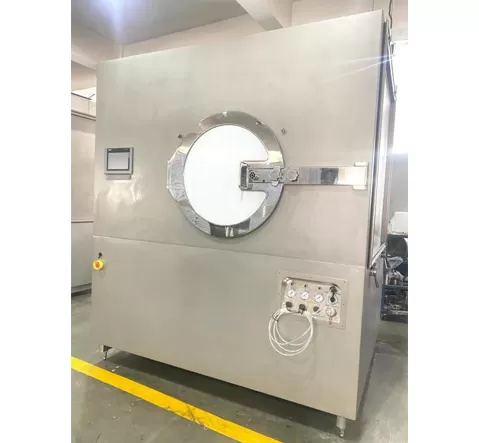

All operations can be finished through pushing the touch key on the computer-controlled panel. The operational panel is a full-sealed slight touch film interface. The main machine as reliable and stable performance.

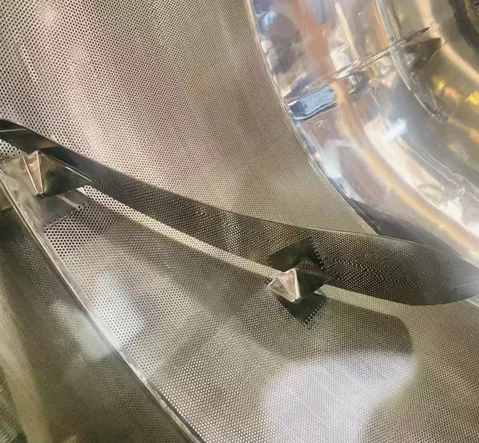

The streamline guiding-type mixer drives tablets to make easy and smooth rotation without fragment and chipped edge, which improves the quality of finished products.
The coating boiler equipped in the high pressure spray gun, which can rotate 180℃, there set a cleaning sprayer at the air exhaust exit and hot air mouth, which can be rotated in automatic and full direction, without dead corner more convenient to clean.
