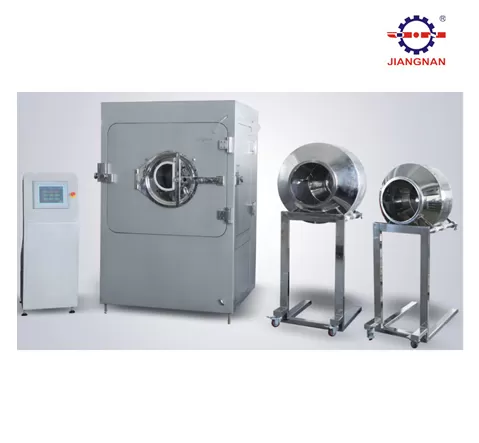

Used for coating various tablets, pills and bubble candies with organic film, water-soluble film and sugar film, etc. And it has such characteristics as high efficiency, low energy consumption and small floor area, etc. And it can be widely used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film etc. in such fields as of pharmaceutical, food and biological line.
BG-5H | Coating pan diameter | 12"(300mm) | 15"(380mm) | 19"(480mm) |
Coating pan's rim diameter | 6"(150mm) | 6"(150mm) | 8"(200mm) | |
Working capacity | 1L/batch | 3L/batch | 5L/batch | |
Mixing guide baffle | 4Set | 4Set | 4Set | |
Tablet bed depth | 3"(75mm) | 4.5"(118mm) | 5.5"(140mm) | |

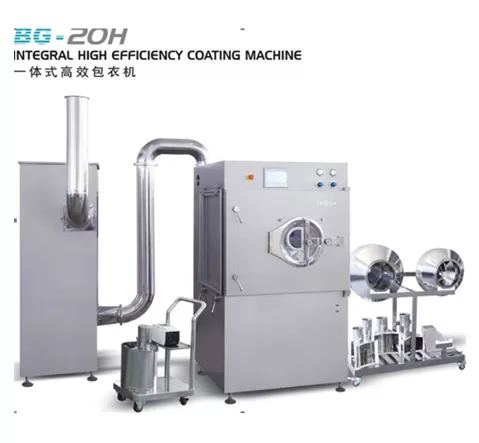

BG-20H | Coating pan diameter | 20"(520mm) | 23"(580mm) | 27"(680mm) |
Coating pan's rim diameter | 11"(280mm) | 11"(280mm) | 11"(280mm) | |
Working capacity | 5L/batch | 10L/batch | 20L/batch | |
Mixing guide baffle | 4Set | 4Set | 4Set | |
Tablet bed depth | 5"(120mm) | 6"(150mm) | 8"(200mm) | |
BG-80H | Coating pan diameter | 27"(680mm) | 30"(750mm) | 37"(930mm) |
Coating pan's rim diameter | 15"(380mm) | 15"(380mm) | 15"(380mm) | |
Working capacity | 10L/batch | 40L/batch | 80L/batch | |
Mixing guide baffle | 4Set | 4Set | 4Set | |
Tablet bed depth | 6"(150mm) | 7"(175mm) | 11"(275mm) |

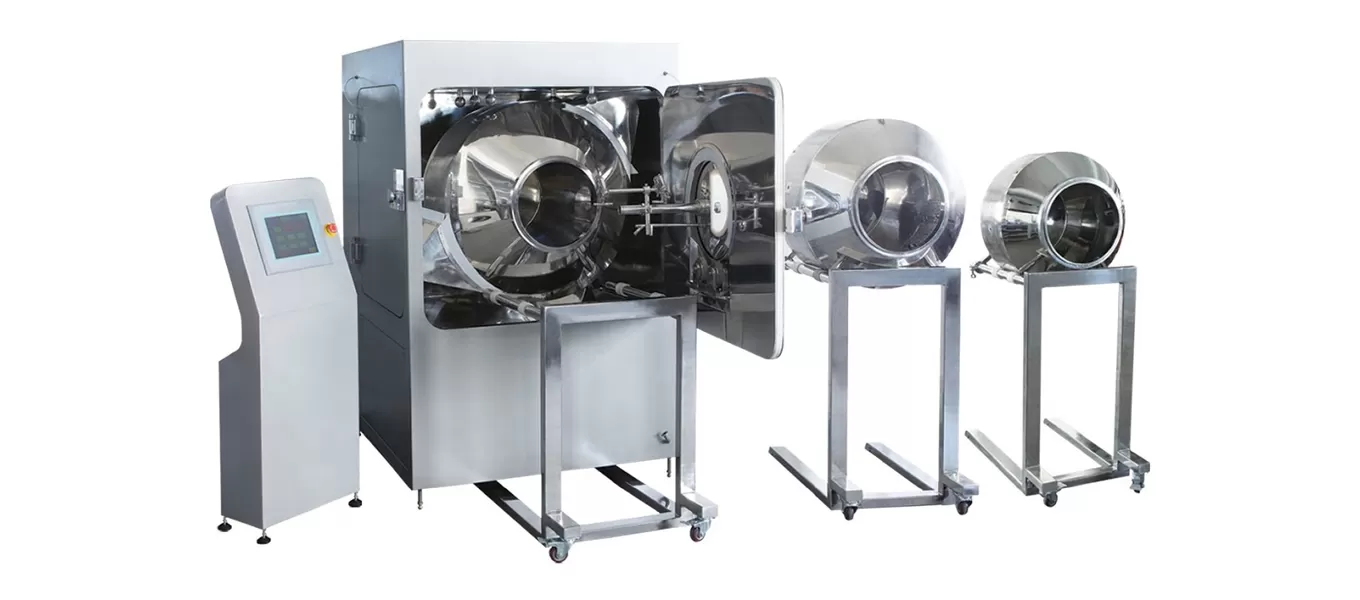

With PLC module, all operations such as hot air temperature setting and control, revolutions of the drum adjustment, automatic control and display of negative pressure etc. can be set by pushing the touch key on the computer-controlled panel fully sealed with slight touch film interface.
The machine is free to clean, with such characteristics as reliable and stable performance. The streamline guiding-type mixer drives tablets to make easy and smooth rotation without fragment and chipped edge, which improves the yield. The guiding sheet has a narrow surface, to which no dressing can be stuck, economization on dressing and improving the quality of finished products.

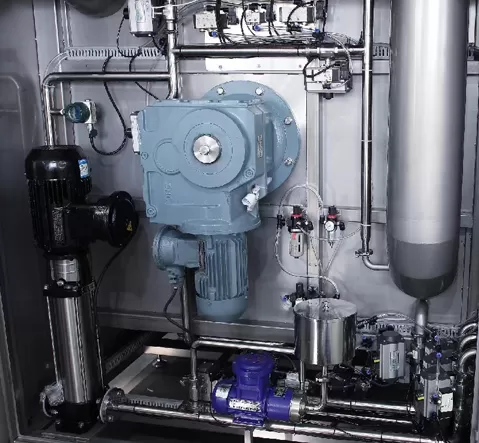

The constant-pressure variable crawler pump features the revolution radius of the roller subject to pressure, automatic control of output syrup amounts and sprayed syrup amounts, stabilization of atomization, simplify of spraying system, economization on dressing, easy to fully clean.
