The CT-C series hot air circle oven features low-noise axial flow fans and an automatic temperature control system. Its fully sealed circulation system significantly boosts heat efficiency, elevating it from the traditional oven range of 3-7% to an impressive 35-45%, with maximum efficiency reaching up to 50%.
This successful design enables the CT-C series hot air circle oven to reach advanced levels both domestically and internationally. It saves China considerable energy resources while boosting enterprise profits. This model earned compliance with the RXH industrial standard issued in 1990 by the State Administration Bureau of Medicines.
Model No. | Capacity (kg/h) | Power of fan (kw) | Total Power (kw) | Volume of wind (m³/h) | Quantity of dryer tray | Quantity of baker | Meas. (mm) |
CT-C-I | 50 | 0.45 | 10 | 3450 | 24 | 1 | 1430×1350×2100 |
CT-C-II | 100 | 0.45 | 18 | 3450 | 48 | 2 | 2400×1350×2300 |
CT-C-III | 200 | 0.90 | 36 | 6900 | 96 | 4 | 2400×2350×2300 |
CT-C-IV | 300 | 1.35 | 54 | 10350 | 144 | 6 | 3220×2430×2300 |
CT-C-V | 400 | 1.80 | 70 | 13800 | 192 | 8 | 4460×2200×2290 |

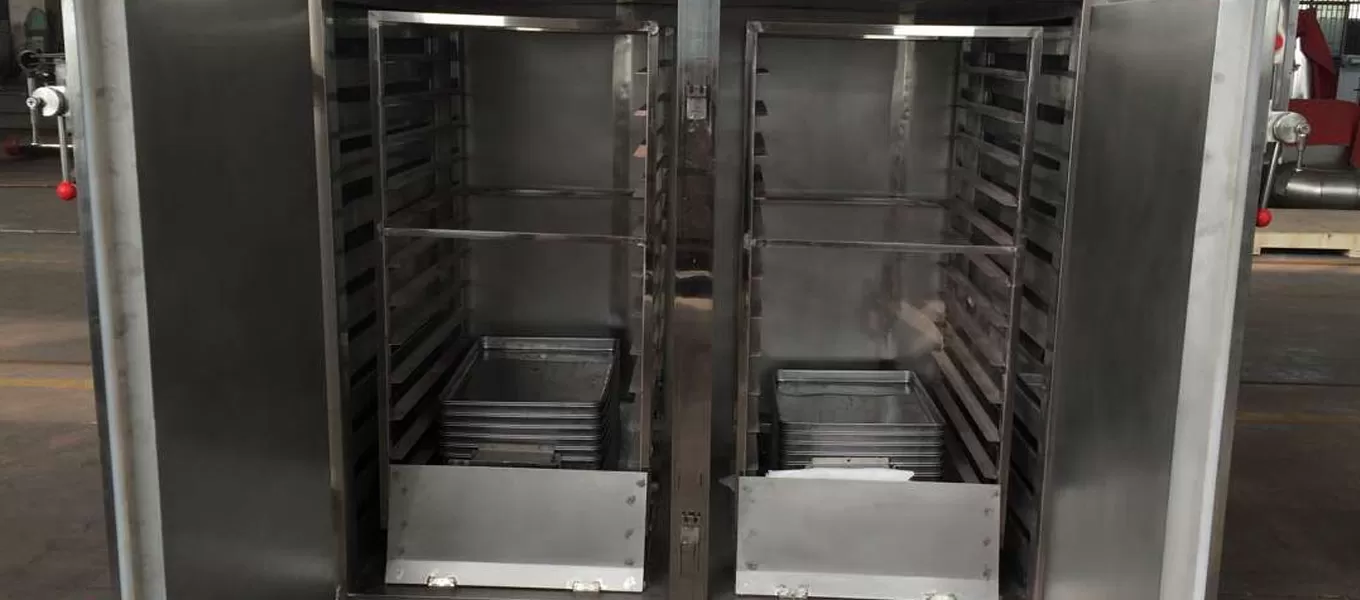

Most hot air is efficiently recirculated within the oven, ensuring high thermal efficiency and significantly reducing energy consumption.
It utilizes an enhanced airflow system and features an adjustable air divider plate, guaranteeing uniform drying across all raw materials. The heat source is versatile, accommodating steam, hot water, electricity, or far infrared.
The machine operates with low noise and stable performance. Temperature control is fully automatic, while installation and maintenance remain exceptionally convenient.
Offering wide applicability, it efficiently dries diverse raw materials, establishing itself as a truly versatile drying solution.
