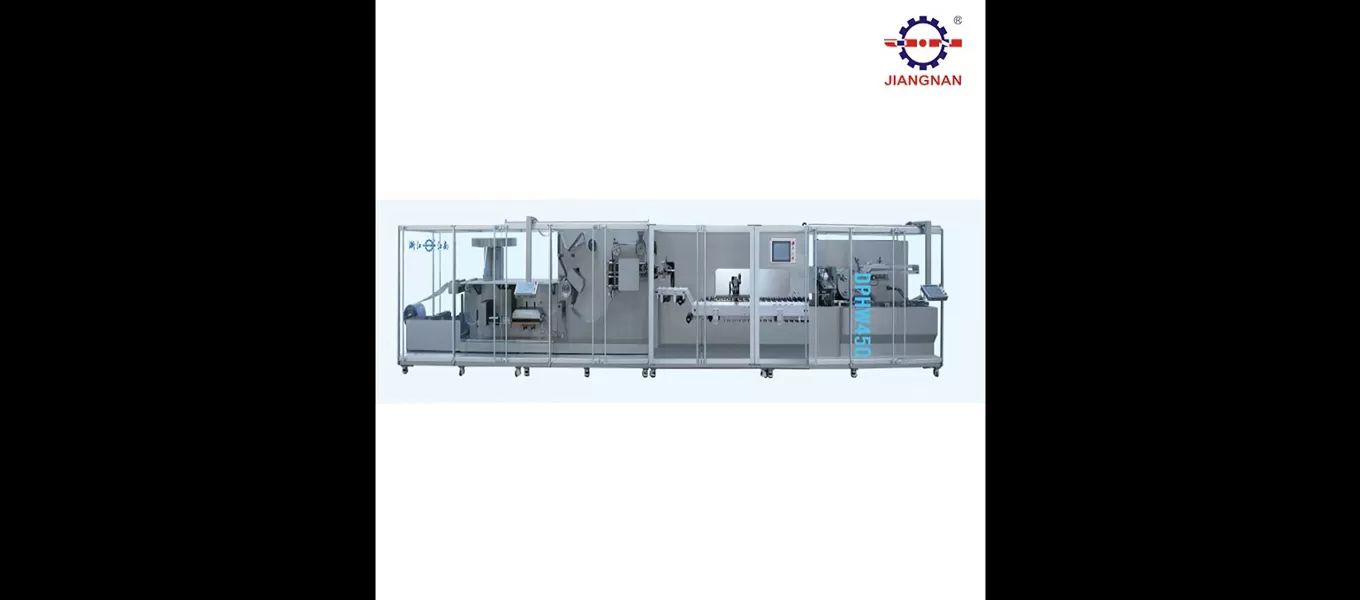

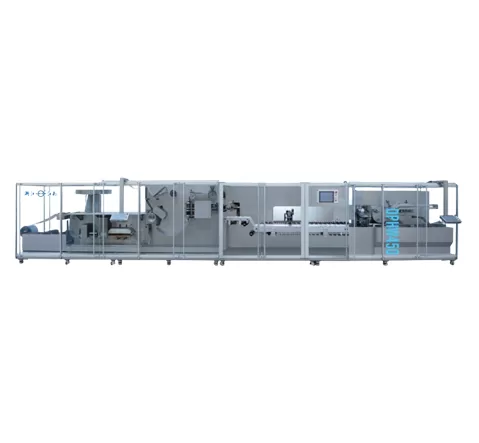

Incorporating advanced domestic and international technology while meeting GMP requirements, the automatic medicine packaging production line comprises an AL-plastic blister packaging machine, a manipulator, and a cartoning machine. The AL-plastic blister packaging machine features an easily adjustable traction stroke, ensuring precise registration. The manipulator operates reliably and is user-friendly. Employing renowned PLCs and other premium components, the automatic cartoning machine controls the entire working process automatically, displays faults, and triggers alarms
Max. Production Capacity | ≤100 Time/Min.(AL-PL packing machine) ≤180 Box/min (Cartoner) |
Max. Forming Area and Depth | 250×110×22mm(AL/PVC), 250×110×18mm(AL/AL) |
Carton Size Range (L×W×H ) | (78-150)×(33-70)×(15-60)mm |
Leaflet Size Range (L×W) | (130-160)×(100-130)mm |
Carton Material | 250-350g/㎡ |
Leaflet Material | 50-70g/㎡ |
Power Supply/Total Power | 380V 50Hz 14.5Kw |
Compressed Air Pressure/Total Consumption | 0.6-0.8Mpa ≥0.8m3/min |
Whole Machine Weight | 5500kg |
Material Filling Rate | ≥99% |
Encasing Pass Rate | ≥99% |
Waste Rejecting Rate | 100% |
SIEMENS Motion control system and HMI.
Overload Protection and Monitoring System, Automatic Temperature Control System, Stopping machine for Missing material and material preparation System, Material control and monitoring system, malfunction recording and position display system. Automatic protection for machine stop and alarm system. Benefiting from high-integrity system, all kinds of personalized functions achieve stable and quick operation.
Basing on analog design, each station works individually and collaboratively. Each function of stations is different so malfunction position is easily detected and maintained.
Fast mould installation all kinds of moulds adopt same size of instillation position.Changeable parts like steel letter plate achieve optimal design of easy dismounting and assembling.Contacting parts with drug are strictly in accordance with national standards or higher than national standards.
Machine adopts separate design. Wire, cable, water and air circuit are all equipped with quick connectors and marked with docking.
