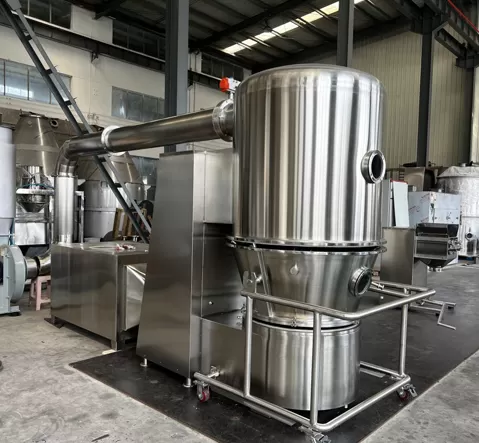

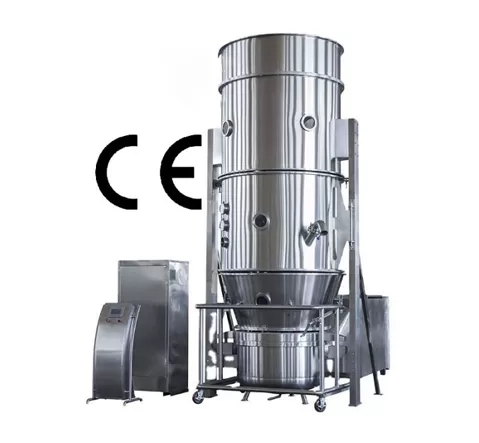

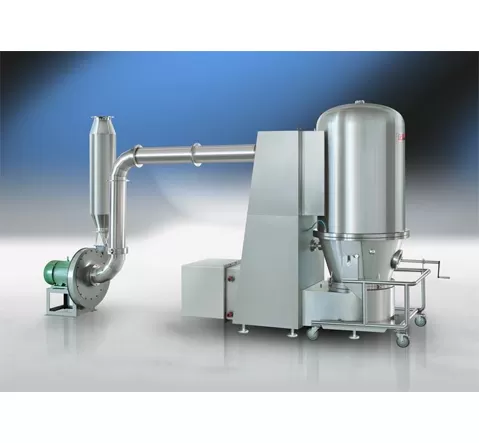

A vital piece of equipment in pharmaceutical manufacturing, the Fluid Bed Dryer (FBD) uses fluidization technology to dry granular or powdered materials like APIs, drug intermediates, and formulation blends. Compressed air (heated/cooled) is forced upward through a perforated bed, suspending particles in a “fluid-like” state—this maximizes heat and mass transfer, enabling fast, uniform moisture removal.
Built to strict GMP standards, it features 316L stainless steel construction (corrosion-resistant, easy to sanitize) and adjustable parameters (temperature, airflow, residence time), making it suitable for heat-sensitive drugs (prevents overheating and potency loss). It also minimizes particle caking, ensures consistent product quality, and integrates with pharmaceutical production lines, aligning with regulatory requirements for purity and traceability.
Model | GFG-60 | GFG-100 | GFG-120 | GFG-150 | GFG-200 | GFG-300 | GFG-500 | |
Raw material (kg) | 60 | 100 | 120 | 150 | 200 | 300 | 500 | |
Fan | Air volume (m³/h) | 2361 | 3488 | 4000 | 4901 | 6032 | 7800 | 10800 |
Air pressure (pa) | 5940 | 5330 | 7100 | 6800 | 7800 | 9500 | 9500 | |
Power (kw) | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 45 | |
Stirring power (kw) | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 | |
Stirring speed (rpm) | 11 | 11 | 11 | 11 | 11 | 11 | 11 | |
Consume of steam heating (kg/h) | 140 | 170 | 210 | 240 | 280 | 360 | 450 | |
Power of electrical heating (kw) | 54 | 63 | 63 | 72 | 81 | 99 | 117 | |
Time of operation (min) | 15-30 | 15-30 | 15-30 | 15-30 | 15-30 | 15-30 | 15-30 | |
Machine height (mm) | 2700 | 2900 | 2900 | 2900 | 3300 | 3800 | 4200 | |
The fluidized bed boasts a circular structure, effectively eliminating dead corners.
A built-in hopper stirrer prevents raw material agglomeration and flow channel formation.
Granules discharge via an efficient turnover method, ensuring thorough and convenient emptying—discharge systems can also be customized to specific requirements.
Rapid drying occurs at uniform temperatures, with each batch typically completing in 15-45 minutes.
