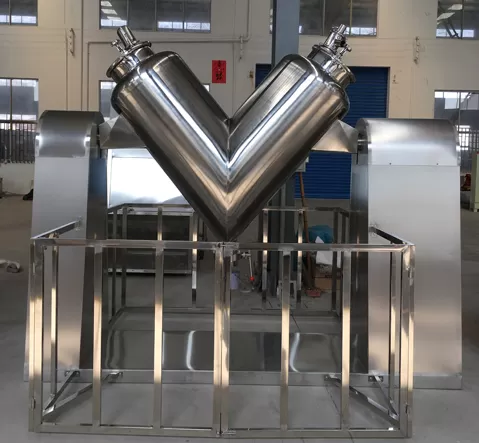

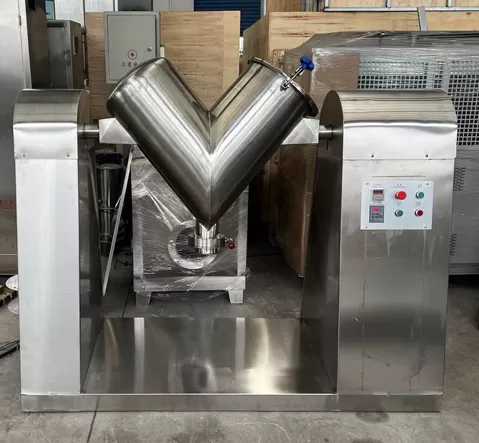

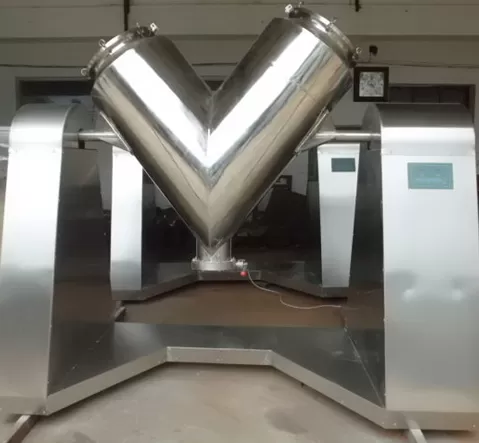

This type of mixer is suitable for the mixing of target materials in powder or paste state evenly. Especially for the mixing of free flowing powders and granular, the effect is more significant. Machine is consisted of V-shaped mixing barrel, left and right bracket, transmission systems and electrical control system. The bracket used to split steel assembled, outsourcing stainless steel panel. Transmission systems used the common motor to drive worm gear reducer, reducer to drive mixing barrel operation. It can be Reversible and have the role of self-locking, it can make the mixing barrel anywhere pause, this is conducive to discharge completely, clean and convenient.
Model | GHJ-50V | GHJ-100V | GHJ-200V | GHJ-300V | GHJ-500V | GHJ-1000V |
Max. Working Capacity | 20kg | 40kg | 80kg | 100kg | 200kg | 400kg |
Mixing time (Min) | 5-20 | 5-20 | 5-20 | 5-20 | 10-30 | 10-30 |
Volume (M3) | 0.05 | 0.1 | 0.2 | 0.3 | 0.5 | 1.0 |
Rotate speed of mixing drum (RPM) | 0-20 | 0-15 | 0-15 | 0-12 | 0-12 | 0-12 |
Motor Power (Kw) | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 4 |
Total height of rotation | 1150mm | 1520mm | 1800mm | 2100mm | 2200mm | 2840mm |
Oversize (L x W x H)mm | 1250×45×1060 | 1620×500×1480 | 1800×600×1850 | 1900×650×1850 | 2500×800×2050 | 2850×1050×2450 |
Weight (kg) | 160 | 220 | 280 | 450 | 650 | 950 |

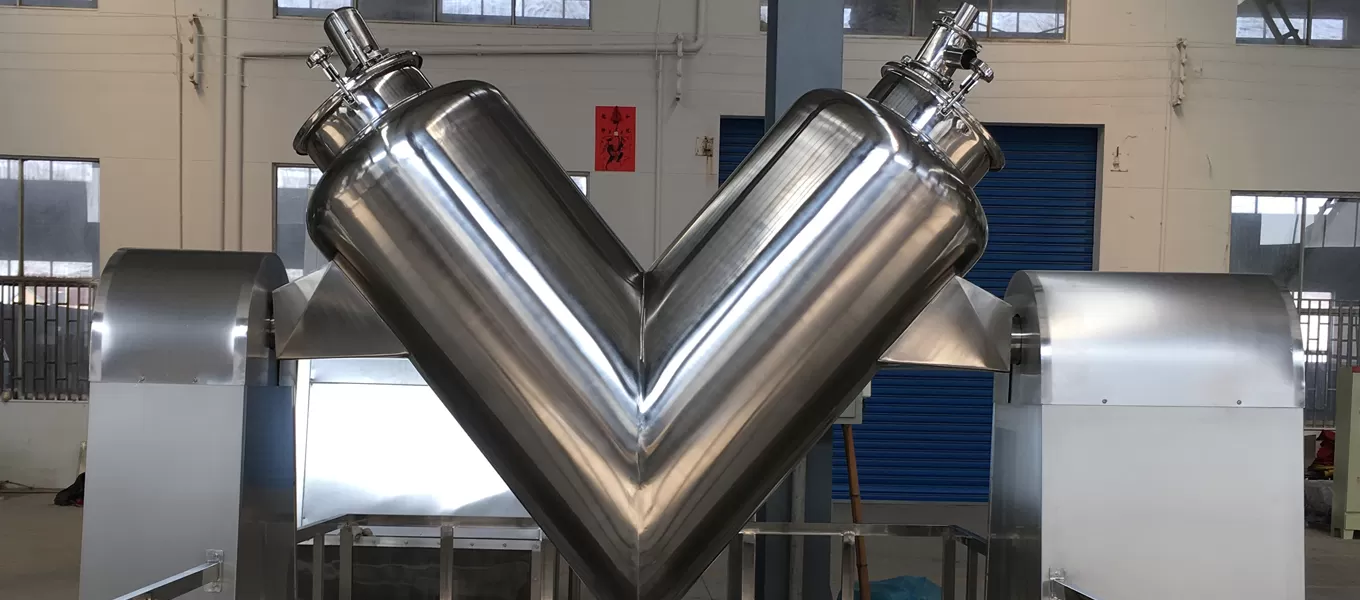

The machine adopted the V-shaped mixing barrel, make the material effective crossover mixing, rotary multi-position mixing.
The machine has the features of the special construction, high mixing effect, no dead angle, uniform mixture etc.
Discharge used the rotating butterfly valve, it is easy to clean and convenient to load.
