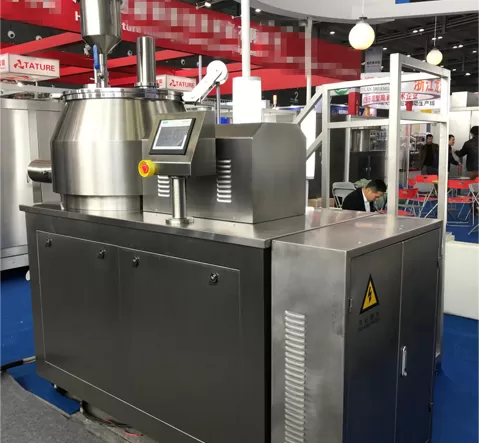

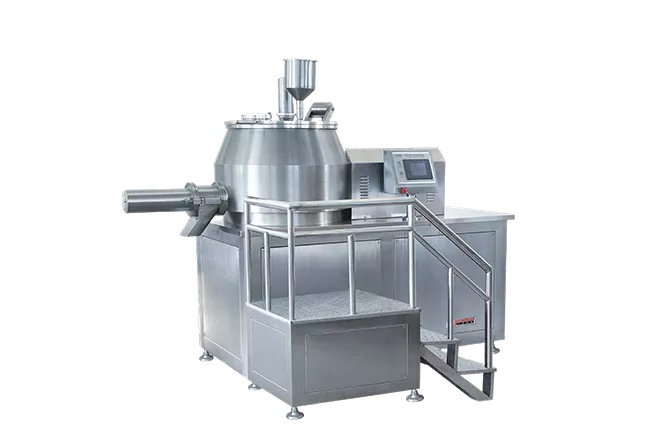

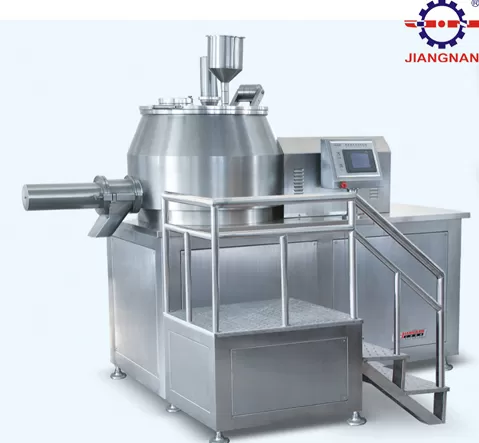

The super mixing granulator excels in powder-to-powder mixing and powder-binder granulation, serving the pharmaceutical, chemical, and food industries. Its operation seamlessly integrates both mixing and granulating functions.
Powdery materials enter the material pot via the conical hopper. Once the hopper closes, the mixing paddle vigorously stirs them, causing the materials to rotate within the pot. Simultaneously, all materials travel along the conical wall, gradually initiating liquid bridge formation. Through extrusion, friction, and kneading by the paddle and cylinder wall, the materials progressively loosen. These softened materials, in a semi-flow state, are then precisely cut into small, uniform granules. Finally, upon opening the discharge door, centrifugal force generated by the paddle efficiently expels the wet granules.
Model | HLSG-50H | HLSG-50 | HLSG-100 | HLSG-200 | HLSG-300 | HLSG-400 | HLSG-600 |
Working Capacity (L) | 3-35 | 12-35 | 25-70 | 80-120 | 130-180 | 150-240 | 200-360 |
Batch Time | Mixing: about 2 minutes Granulation: about 7-14 minutes/batch | ||||||
Agitator Speed (rpm) | 0-700 | 25-500 | 30-250 | 30-250 | 30-220 | 30-200 | 30-170 |
Agitator Motor Power (kW) | 5.5 | 5.5 | 7.5 | 15 | 18.5 | 22 | 30 |
Chopper Speed (rpm) | 50-3000 | ||||||
Chopper Motor Power (kW) | 1.5 | 1.5 | 3 | 4 | 7.5 | 11 | 11 |
Dimensions (L×W×H) (mm) | 1925×704×1560 | 1935×662×1650 | 2078×702×1800 | 2268×910×2100 | 2600x1000×2300 | 2870×1172×2560 | 2964×1230×2553 |
Height of Discharge Outlet (mm) | 780 | 796 | 796 | 92o | 985 | 985 | 1162 |
Machine Weight (kg) | 600 | 584 | 700 | 1111 | 1350 | 1700 | 2000 |

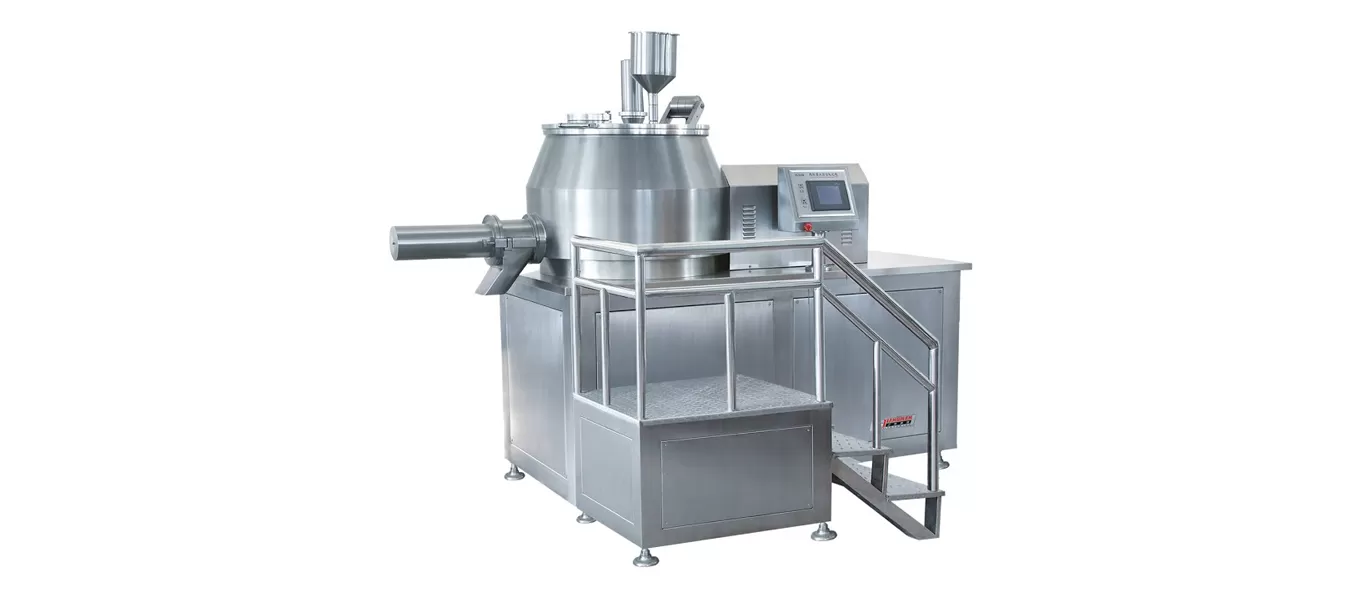

With consistent programmed technology ( man-machine interface if option selected ), the machine can get assured of stability in quality, as well as easy manual operation for convenience of technological parameter and flow progress.
Adopt frequency speed adjustment to control the stirring blade and cutter, easy to control the size of particle.
With the rotating shaft hermetically filled with air, it can prevent all dust from compact.
With a structure of conical hopper tank, all material can be in uniform rotation. The tank is laid with an interlayer on the bottom, in which water cooling circulation system featuring higher thermostatic performance than air cooling system is furnished, which leads to improve the quality of particles.
With automatic lifting of the pan cover, the tank outlet matching with drying device, self-equipped arm-ladder, it is easy to operate.
Mouth of material outlet has changed into arc-shaped, avoiding up dead spaces.
