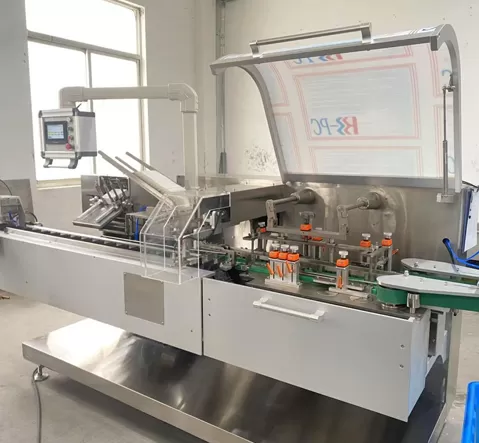

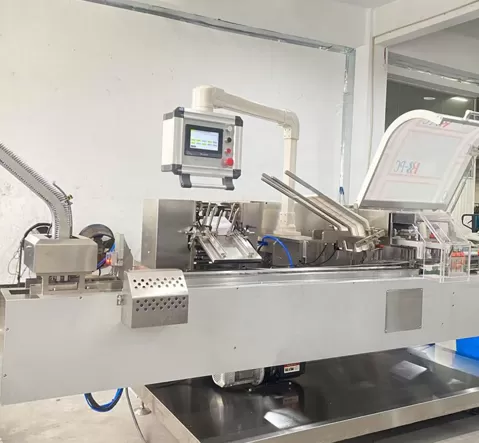

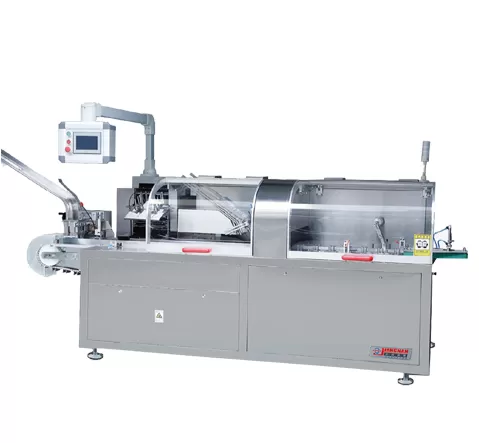

This advanced equipment integrates cutting-edge domestic and international technology.
It represents a high-tech product incorporating pneumatic, photoelectric, and mechanical systems, significantly enhancing performance and operational efficiency. This enables rapid encasing while ensuring stable and reliable operation at high speeds.

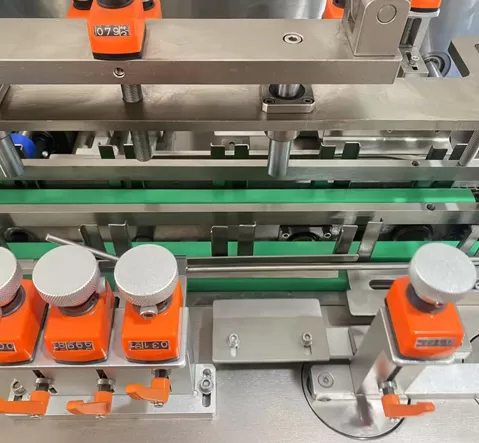

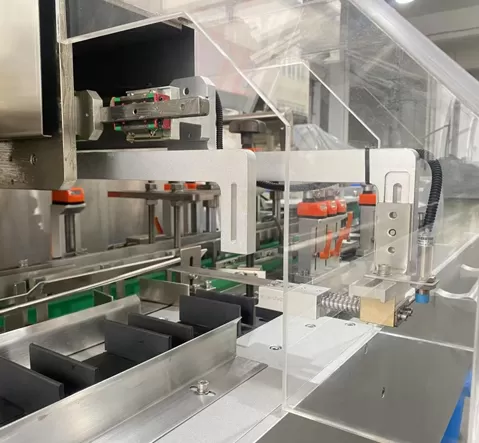

The machine is ideal for blister package products. Easily adjust the automatic feeding structure and set blister quantities via the touch screen. It performs online product feeding and detection, leaflet folding (1-4 folds) and feeding, leaflet verification, carton opening and forming, insertion of products and leaflets into the carton, batch number printing, and carton sealing using tuck-in or hot melt glue devices. It automatically rejects units lacking leaflets or products and outputs the finished goods.
It is suitable for carton packaging across various industries, including Food, Cosmetics, Daily Necessities, and related industries.
Main technical parameters | ||
Item | Parameters | |
Encasing speed | 20-100 boxes /min【Base on carton size】 | |
Box | Quality requirement | 300-350g/㎡【Base on carton size】 |
Dimension range（L×W×H） | （80-180）mm×（30-95）mm×（15-50）mm | |
Leaflet | Quality requirement | 70-80g/㎡ |
Unfolded leaflet specification | （130-240）mm×（90-180）mm | |
Fold range | 【1-4】Fold | |
Compressed air | Working pressure | ≥0.6mpa |
Air consumption | ≥0.16m3/min. | |
Power supply | 380V 50Hz. 1.5KW | |
Machine dimension(L×W×H) | 3391×1203×1770mm | |
Machine weight | 1200kg | |
International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
Adopt human-machine operation system.
Automatically stop when machine is overload.
Automatically reject lacking of package product and leaflet.
Automatically display trouble, Alarm and count finished products.
Stable performance, operation is easy.
