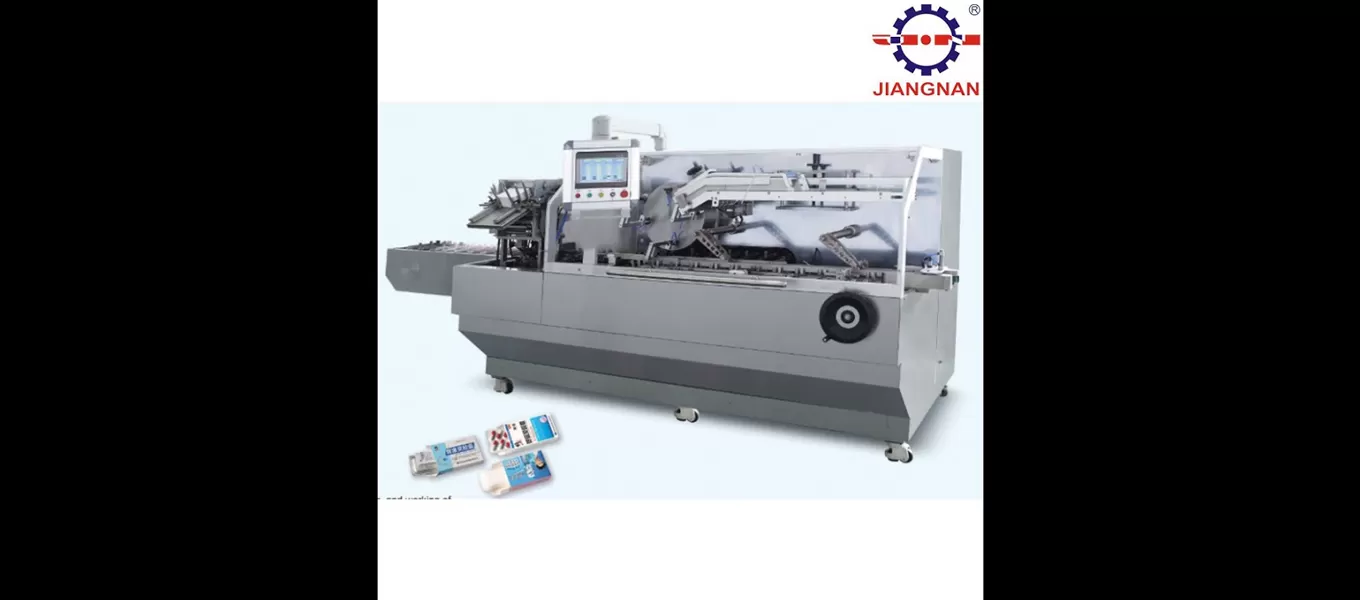

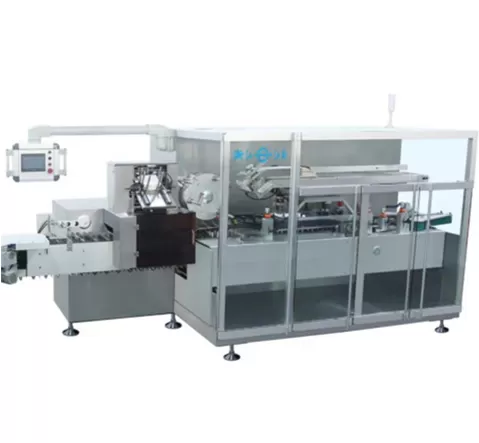

ZH-220 horizontal automatic cartoning machine integrates light, electricity, gas, and machinery into a compact, high-tech solution. Its small footprint, light weight, broad applicability, and high production efficiency make it ideal for automatically boxing blister-formed capsules, tablets, aluminum-plastic packaging blister boards, and similar items.

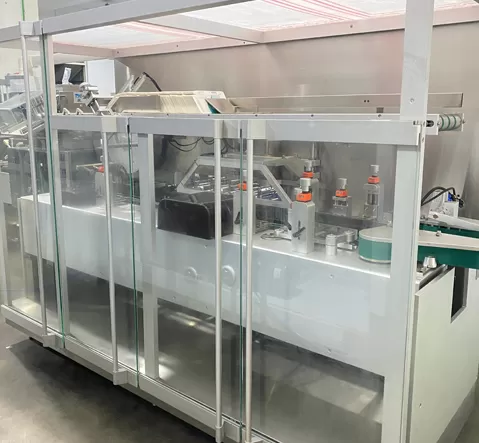

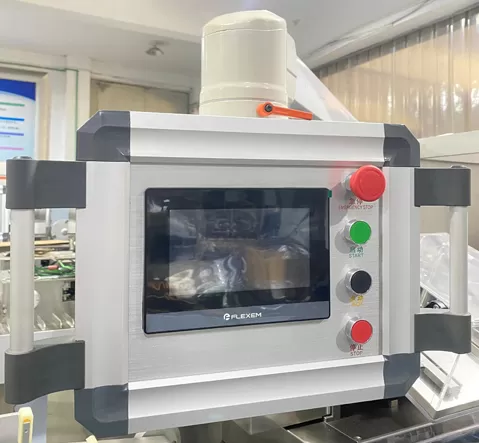

Constructed entirely with high-quality stainless steel, the machine features a working surface enclosed by plexiglass doors and windows. This innovative design strictly adheres to the pharmaceutical industry's "GMP" standards. Its transmission system incorporates overload protection and an emergency stop device, while the user-friendly human-machine interface screen prioritizes operator safety.
Main technical parameters | ||
Item | Parameters | |
Encasing speed | 80-220 boxes /min | |
Box | Quality requirement | 250-350g/㎡【Base on carton size】 |
Dimension range（L×W×H） | （80-150）*（30-90）*（15-40）mm | |
Leafle | Quality requirement | 60-80g/㎡ |
Unfolded leaflet specification | （130-240）X（100-180）㎜ | |
Fold range | 【1-4】Fold | |
Compressed air | Working pressure | ≥0.6mpa |
Air consumption | 120-160L/min | |
Power supply | 380V 50HZ | |
Main motor power | 1.5kw | |
Machine dimension(L×W×H) | 4500㎜×1600㎜×1600㎜ | |
Machine weight | 1758Kgs | |
Horizontal cartoning machines reliably load items of uniform or consistently shaped items within a specific size range into designated cartons, securely sealing the boxes for output. They are suitable for packaging carton products across diverse industries, including pharmaceuticals, food, cosmetics, and related sectors.
Horizontal cartoning machines can serve as the final link in upstream production lines to complete product packing tasks, function as upstream machines for downstream processes like bundling and packing, or operate effectively as standalone units.
The cartoning machine readily adapt to different product specifications. Mold adjustments require minimal time, and assembly and debugging are straightforward. Horizontal cartoners efficiently meet both high-volume, single-product demands and low-volume, multi-product production requirements.
