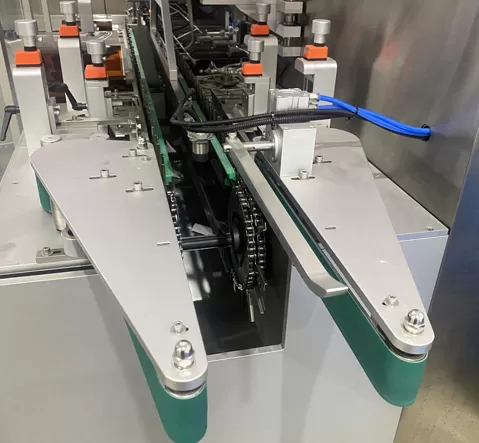

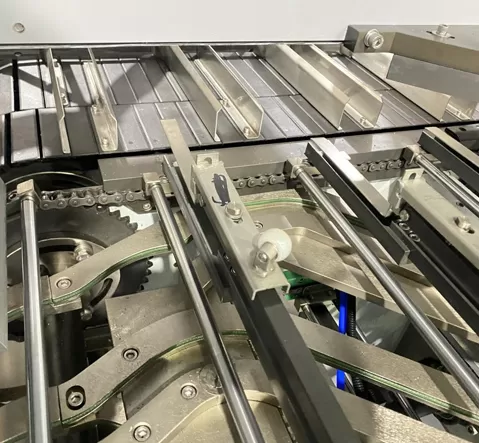

The ZH-320/450 horizontal automatic cartoning machine is a compact, lightweight electromechanical integration product. It offers wide applicability, high efficiency, and suits automatic boxing of blister-packed capsules, tablets, or similar items.
Its process involves: conveying drug boards/goods; auto insertion of leaflets (automatically folded 1-4 folds); automatic carton erection and transfer; simultaneous insertion of drug board and leaflet into the carton; and automatic batch numbering, end flap sealing, and other complex packaging.
Featuring a high-quality stainless steel housing with plexiglass enclosures, it meets pharmaceutical "GMP" standards. The design includes overload protection, emergency stop, and an HMI screen for operator safety.
Model | ZH-320 | ZH-450 | |
Encasing speed | <=320(Box/min) | <=450(Box/min) | |
Box | Quality requirement | 280-350g/m^2 | 280-350g/m^2 |
Dimension range(L*W*H) | (70-180)*(35-85)*(15-65)mm | (70-180)*(35-80)*(15-50)mm | |
Leaflet | Quality requirement | 60-80g/m^2 | 60-80g/m^2 |
Unfolded leaflet specification(1-4 Fold) | (90-250)*(90-180)mm | (90-250)*(90-180)mm | |
pressurized air | Air consumption | >=0.3m^3/min 0.6Mpa | >=0.3m^3/min 0.6Mpa |
Main motor power | 2.2Kw 380V 50HZ | 3.2Kw 380V 50HZ | |
Machine Dimension(L*W*H) | 4200*1550*1700mm | 4500*1550*1700mm | |
Machine net weight | 3000Kg | 3500Kg | |

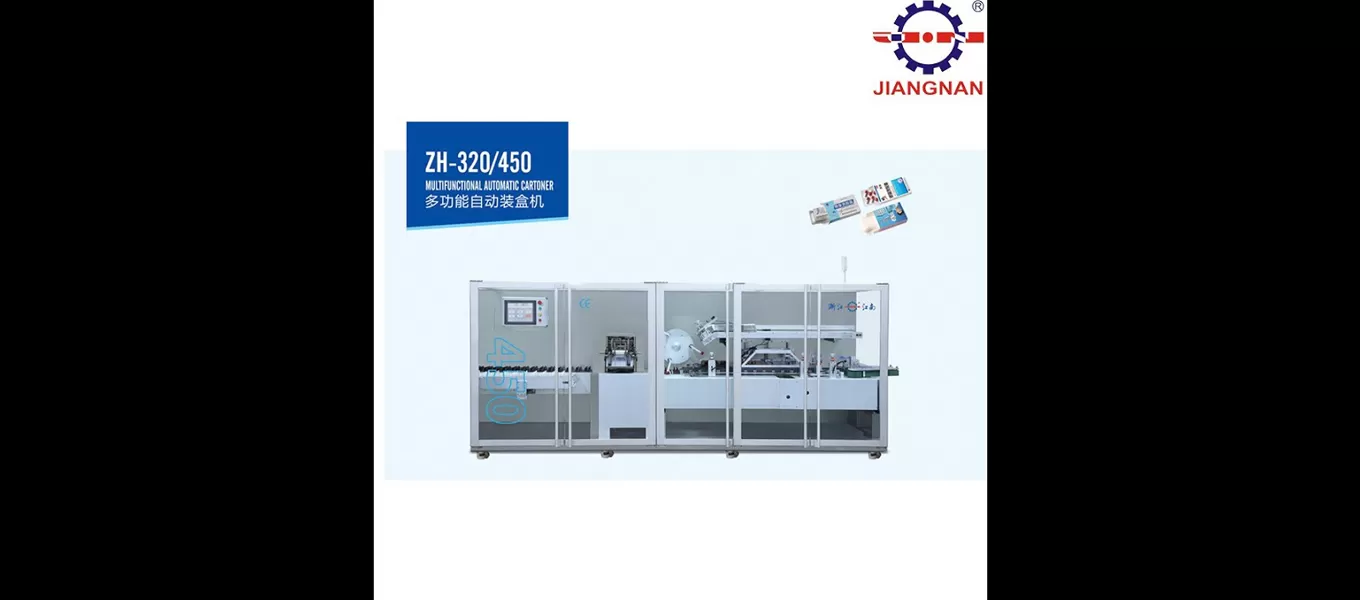

Horizontal cartoning machine, as a versatile new-generation solution, boasts the following exceptional characteristics:
Rational structure, smooth transmission, and remarkably low noise;
Superior packaging quality with a fundamentally beautiful carton shape;
Broad adaptability to various products, featuring straightforward installation and commissioning;
Human-machine interface operation, designed for exceptional convenience, reliability, and stability;
Main drive equipped with overload protection, complemented by a robust detection system and safety devices, guaranteeing packaging integrity and operational safety;
No product, no leaflet suction; no leaflet, no carton suction;
Absence of product or inadequate product supply prevents pushing; resumes automatic product feeding once supply restores; automatically shuts down if product insertion fails;
No carton triggers automatic shutdown; no leaflet triggers automatic shutdown;
Automatically displays cartoning speed and production count.
