The bottle transfer mechanism delivers the bottle to the position to be filled. The medicine enters the medicine bin orderly through the vibration of the feeding corrugated plate. The medicine bin is equipped with a counting photoelectric sensor. The medicine falling into the medicine bin is quantitatively counted by the photoelectric counting sensor and then loaded into the bottle at the bottling position.
Technical Parameters | |
Suitable bottle type | 10~500ml round and square plastic bottle |
Filling material | 00~5# capsules, soft capsules, Φ5.5 ~ 20 vegetarian tablets, shaped tablets, sugar coated tablets, Φ3 ~ 20 pills |
Capacity | 10-30 bottles/min (It is related to bottle size, filling capacity and drug specifications) |
Bottle filling amount setting range | 1-9999 |
Total power | 0.6 kw |
Voltage | 220V 50HZ |
Accuracy rate | ＞99.5% |
Air pressure | 0.6Mpa |
Machine dimension | 1360*1650*1650mm |
Weight | 300KG |

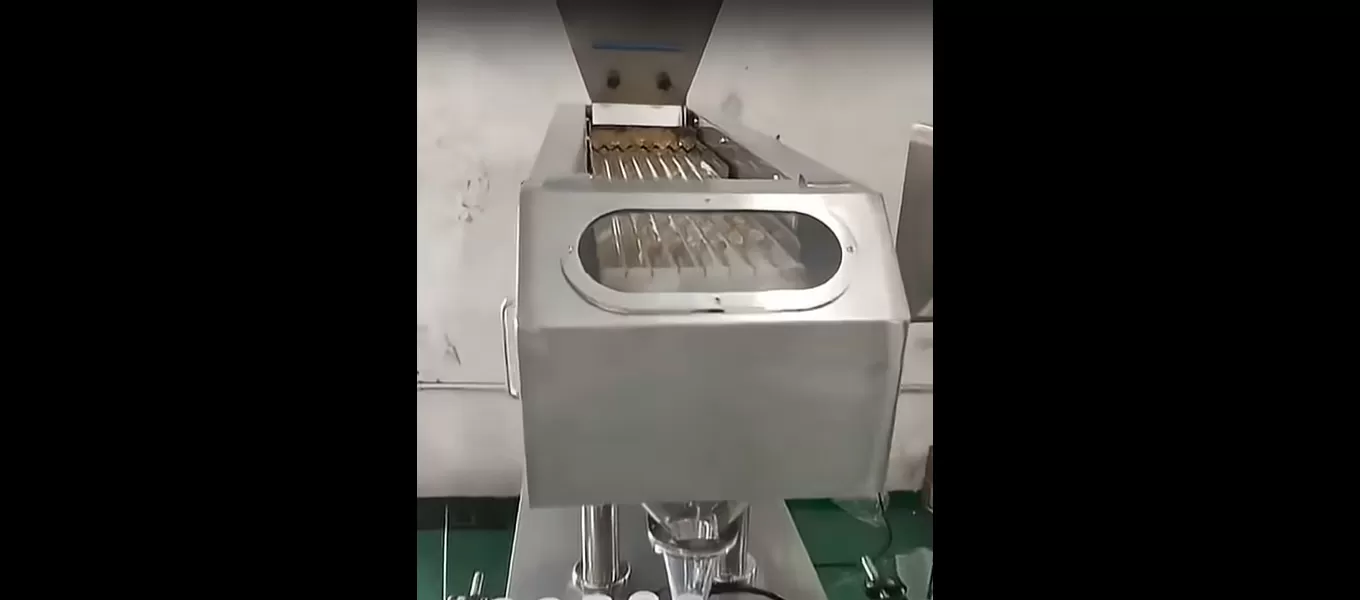

Strong compatibility, can be tablets (including shaped tablets), capsules, soft capsules (transparent, opaque), pills and other solid preparations or solid particles for counting and bottling;
Vibration blanking: the channel vibration is uniform feeding, the unique patent flip plate subassembly mechanism is uniform and stable feeding and discharging, without damaging the drug;
Anti-high dust: the company's anti-high dust photoelectric sensor technology can work stably in the case of high dust;
Accurate counting: the photoelectric sensor automatically counts, and the bottling error is less than the national standard;
High degree of intelligence, with a number of detection alarm control functions such as no bottle, fault self-test;
Functional support: automatic detection of missing bottle photoelectric sensor, automatic shutdown;
Simple operation: intelligent design is adopted, and various operating parameters are set according to needs;
Easy maintenance: the operator only needs simple training to operate, disassembly, cleaning, replacement parts are simple and convenient, no tools are required;
Sealed dust: equipped with dust removal box to reduce dust pollution (optional).
