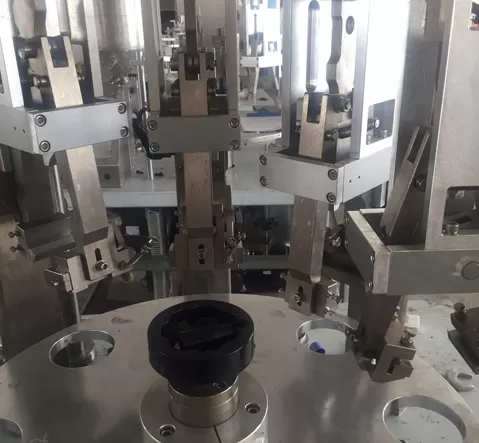

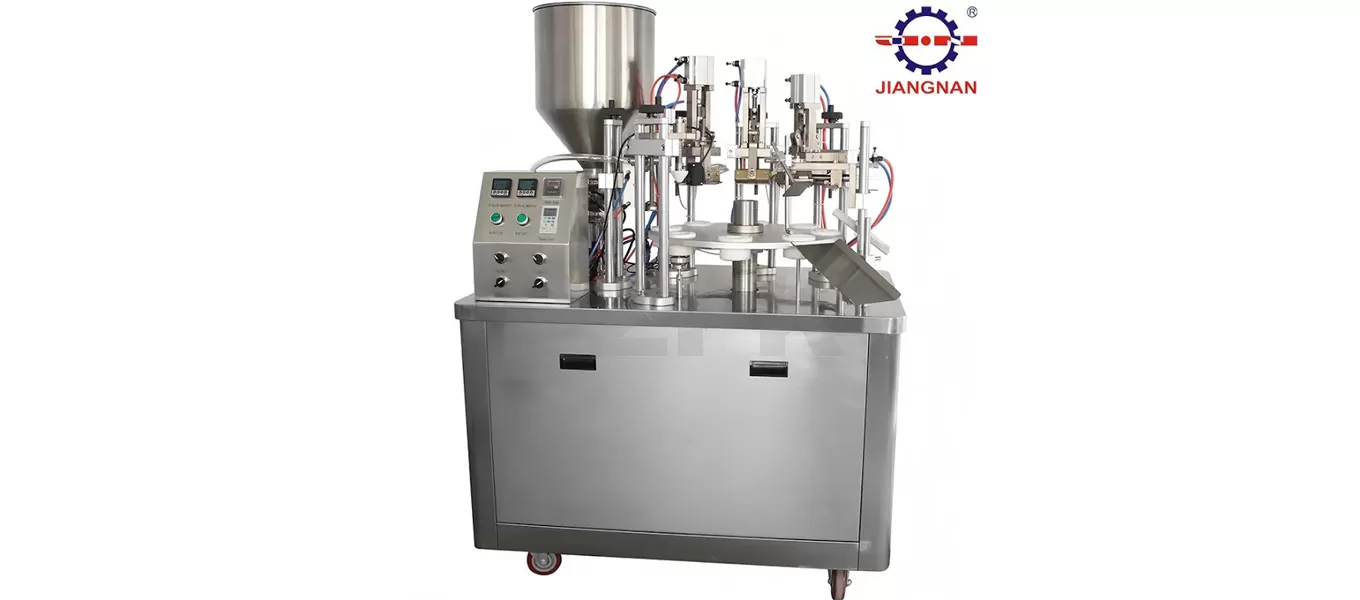

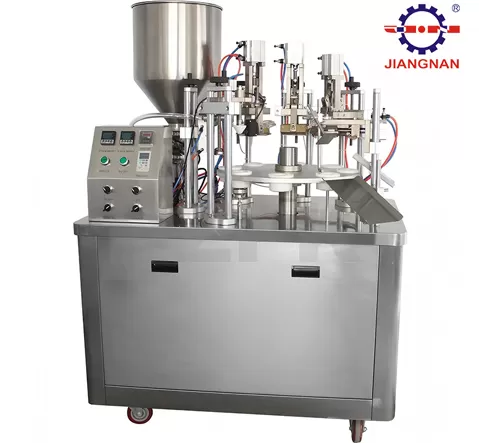

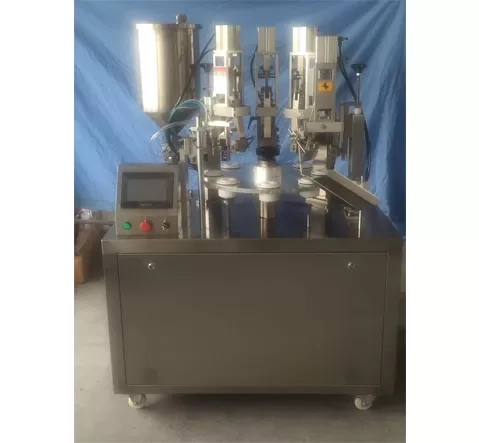

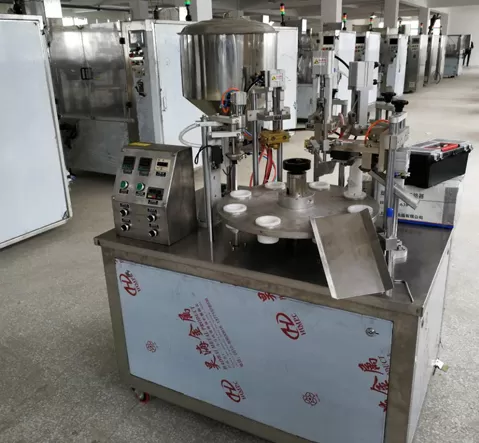

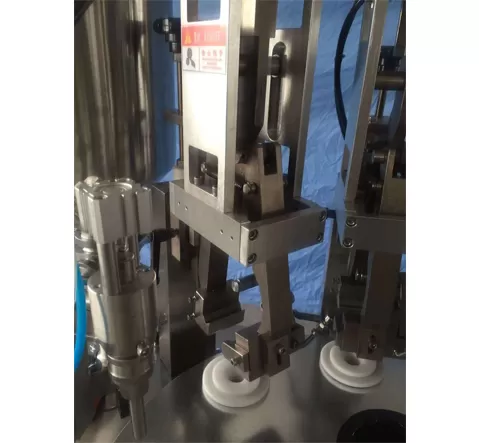

The NF-30 semi-auto tube filling and sealing machine operates primarily on the indexing transmission principle. This mechanism drives the rotary table equipped with tube clamps, enabling precise intermittent movement. During this motion, the machine seamlessly performs automatic filling, double-sided tail folding, three-side folding, and saddle-shaped folding and sealing. The shape and dimensions of the seal can be easily and precisely adjusted to meet specific user requirements.
It serves as an ideal solution for the cosmetics, pharmaceutical, adhesive, shoe polish, and related industries.
Model | NF-30 |
Suitable for | Cosmetic cream, lotion, gel, toothpaste, sauce, glue and so on |
Filling volume | 1-250ml |
Production capacity | 1-30 Tubes per min |
Voltage | 110/220/380V customized |
Power | 750w |
Weight | 300Kg |
Size | 1200X820X1650 (mm)(L*W*H) |
Easy to operate and maintain.
Automatic positioning, filling, welding, cutting and trimming, printing code in one time.
Sealing mould can be customized according to customer requirements. Can seal many size of tubes.
Can be work in time, not need wait the heat time.
