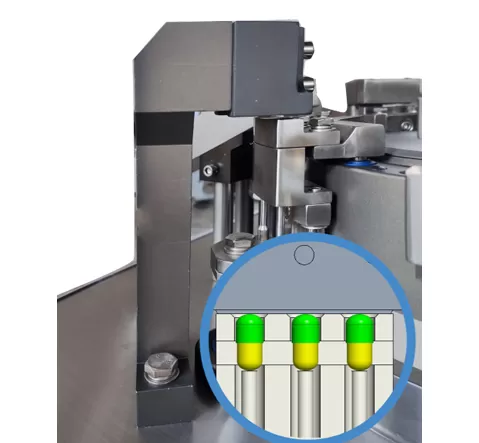

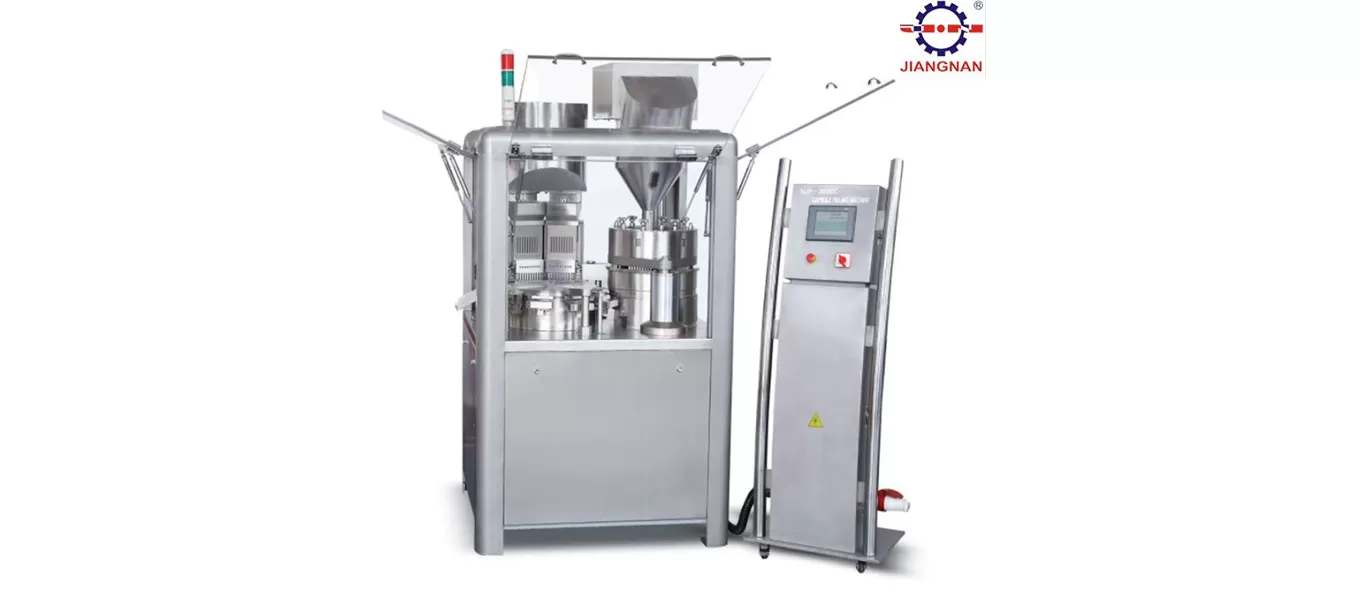

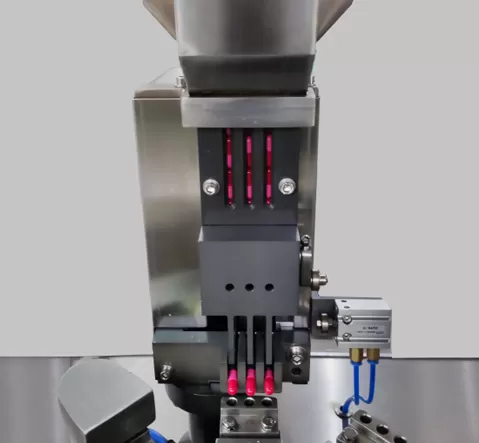

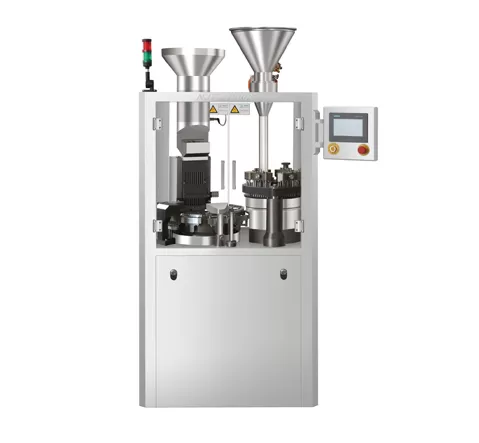

This capsule filling machine is engineered with cutting-edge features for processing both powder and granule medications. It employs a specialized intermittent filling system that dynamically adjusts speed, making it ideal for fully automating capsule filling. The machine expertly handles every stage: positioning capsules, separating caps from bodies, precisely filling them, and rejecting any substandard units. It then automatically locks capsules securely and ejects the finished product.
Adhering strictly to GMP standards, this automatic capsule filler utilizes premium stainless steel for all medicine-contact components, ensuring impeccable hygiene and safety.
Model | NJP-200C | NJP-400C | NJP-800C | NJP-1200C |
Capacity (pcs/min) | 200 | 400 | 800 | 1200 |
No. of mould Bores | 2 | 3 | 6 | 9 |
Applicable Capsule | 00#-4# | 00#-4# | 00#-4# | 00#-4# |
Total Power (kW) | 3 | 3 | 4 | 5 |
Machine Weight (kg) | 600 | 700 | 800 | 900 |
Overall Dimensions (mm) | 610×670×1600 | 730×950×1700 | 700×900×1800 | 800×1000×1800 |
A standout feature is the capsule filler's lower-positioned cam mechanism, seamlessly integrated with a pressure atomizing oil pump. This pairing ensures consistent lubrication within the cam groove, drastically reducing wear and significantly extending component lifespan.

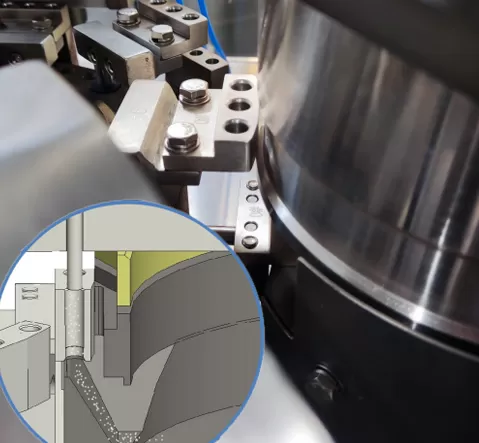

Innovatively, a barrier surrounds the dosage disk, efficiently capturing and recycling any powder shed from its lower plane via an alternate pipeline. This clever solution minimizes dust accumulation on the work surface.
Equipped with a Siemens HMI (human-machine interface) and a PLC programmable controller, the capsule filler offers intuitive control and effortless operation. This modern technology delivers advanced, user-friendly management of the filling process, boosting efficiency in pharmaceutical manufacturing.
