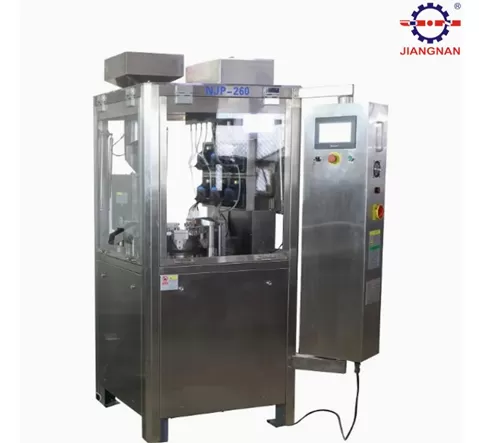

Fully automatic capsule filling machine for capsule liquid filling, Germany imported liquid pump, Japan servo feed system and the closed die wheel design, ensure the filling quantity difference, measuring precision, control within the +- 1.5%, can pack oily liquid, solution , fish oil,suspension liquid or paste etc. the machine adopts automatic frequency control of motor speed, convenient and intuitive operation. The machine as the new century a new convenient dosing filling way and the idea, is the ideal equipment in the pharmaceutical, food, health care products industry.
Item/Model | NJP-260 | NJP-450 |
Production capacity | 260pcs/min | 450pcs/min |
Fill in the material | Oily liquid, fish oil, suspension liquid, or paste | |
Die number | 2 holes | 3 holes |
Capsule filling precision on machine | 99.8% | |
Capsule size | 00-5# | |
The liquid filling quantity accuracy | 2% | |
Power supply | 380V 50HZ 3KW | |
Weight | 500kg | 700kg |
Dimension | 700x800x1700mm | 730x950x1700mm |

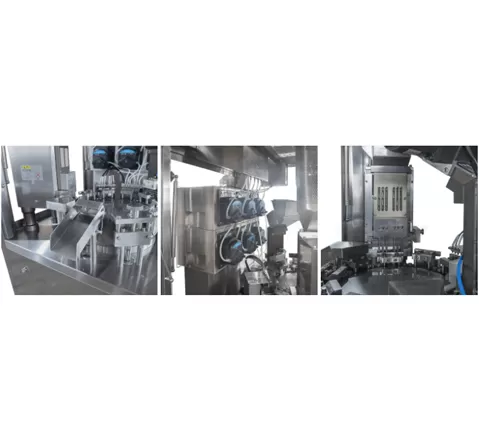

Improve the driving cams of all stations, from original outer cam pulled by spring to inner groove cam made of high-quality special material. This change, eliminating the disadvantages of easy fatigue and short service life for spring pulling method, makes the machine more wearable and stable.
In consideration of the medicine dust easy to enter the machine mould after long-time running, causing the mould rotary plate to be disassembled for cleaning, the innovation design of seal ring preventing dust from outside is developed and applied to this machine, which completely ensures the sealing in running process and eliminates the shortcoming of tedious maintenance.
This machine adds the inching control system, convenient for the human-oriented operation in manufacturing and cleaning process.
If lack of capsule, the liquid feeding will stop automatically.
