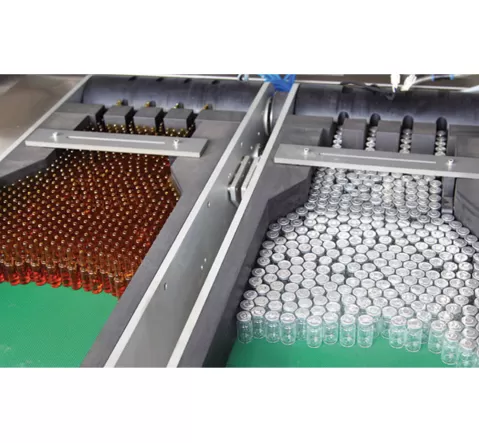

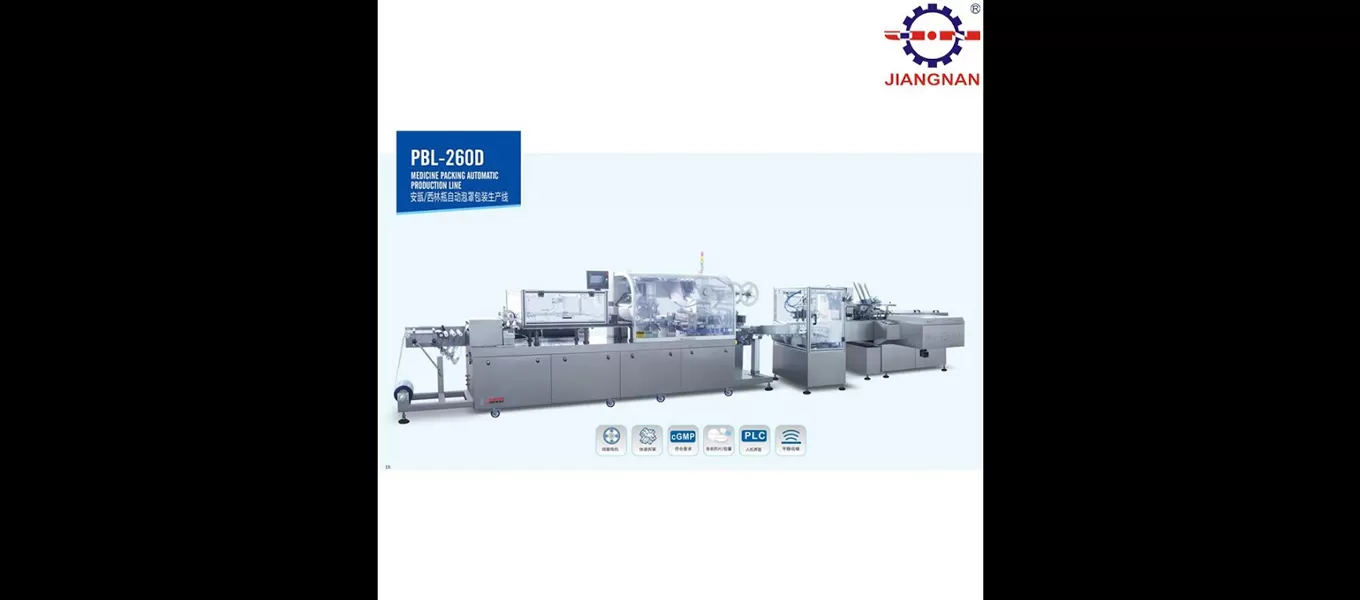

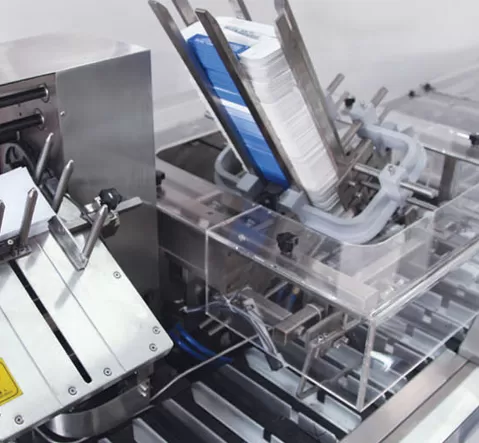

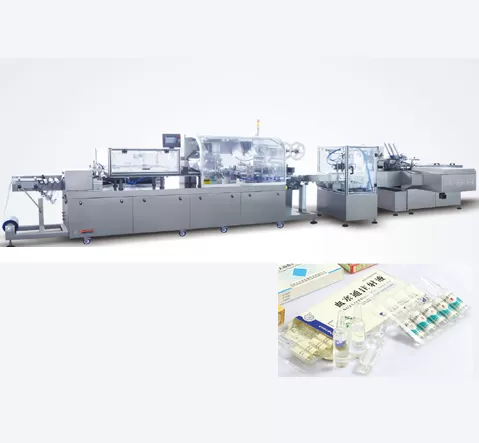

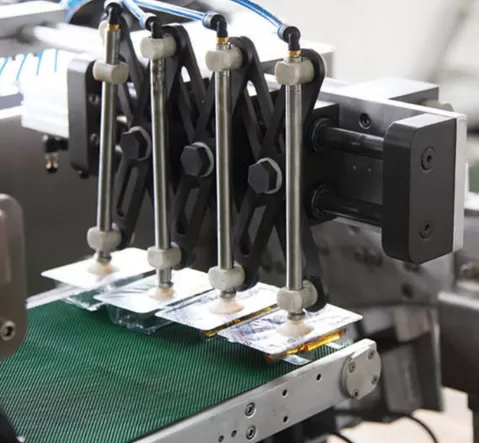

This machine is specialized for the combined blister packing of both one ampoule and one vial according to the requirement of customers. It is composed of blister forming, ampoule feeding, vial feeding, traction, hot sealing, cutting and cartoning. It is controlled by PLC, has advanced self-examining function, can identify broken blister, shortage of bottle, shortage of leaflet and empty box examing memory. It has function of 100% elimination of waste products, automatic vial feeding and automatic leaflet cartoning functions.
Production capacity(related to the shape and size of material) | <=20-25Time/Min.(AL/PVC packing machine) <=220Box/Min.(Cartoner) |
Max. forming area and depth | (AL/PVC):250*110*22mm (AL/AL):250*110*18mm |
Carton size scope(L*W*H) | (800-150)*(40-90)*(15-40)mm |
Leaflet size scope(L*W) | (130-240)*(100-180)mm |
Carton material | 250-350g/m^2 |
Leaflet material | 60-80g/m^2 |
Powe Supply/Total power | 380V 50HZ 14.5KW |
Compress air pressure/Total air Consumption | 0.6-0.8Mpa >=0.8m^3/min |
Whole machine weight | 4500Kg |
Material filling weight | >=99% |
Encasing rate of finished products | >=99% |
