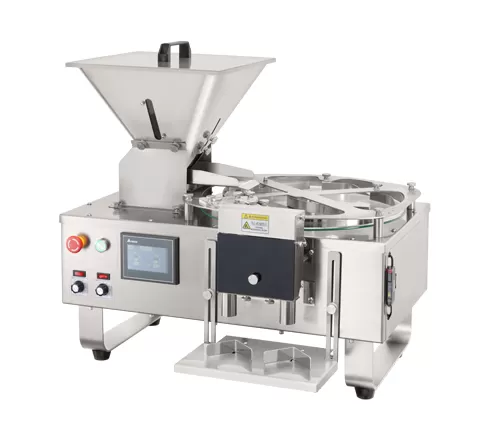

PY-2B Intelligent Electronic Counting Machine is made by our company using the most advanced international vibration type channel feeding, oscillator stepless speed regulation, touch screen PLC intelligent control, optical fiber sensing probe counting, system self-test, automatic stop, and other advanced technology. The machine is made of stainless steel and designed according to GMP standards, and it is a high-tech pharmaceutical counting machine. It can be bottled, boxed and bagged and is fully compliant with GMP requirements, especially suitable for research institutes, hospitals, new small pharmaceutical plants and health care plants.
Speed | 600 - 2000capsules/min |
Application Scope | Hard capsules, soft capsules, tablets, pills, etc. |
Control Method | Touch screen control |
Counting Method | Fiber optic infrared detection |
Applicable Size | Capsule Model: 00#-5# Tablet Diameter : 5-25mm |
Bottle Size | Diameter 25-75mm, Height≤180mm |
Counting Errors | ±0.3% |
Motor Power | 110V～220V/50-60Hz /25W |
Net Weight (kg) | 50kg |
External Dimensions | 735mm×580MM×720MM |
Machine Material | Stainless steel of main parts material 304(0Cr18Ni9） |
This machine is a quasi-tabletop type counting machine with reasonable design, compact structure, easy to use and high counting efficiency. It can be widely used in the fast counting bottling for a variety of different shapes and sizes of tablets, capsules, pills, transparent soft capsules and other drugs. The counting bottling accuracy has reached the advanced level of similar products at domestic and overseas.
