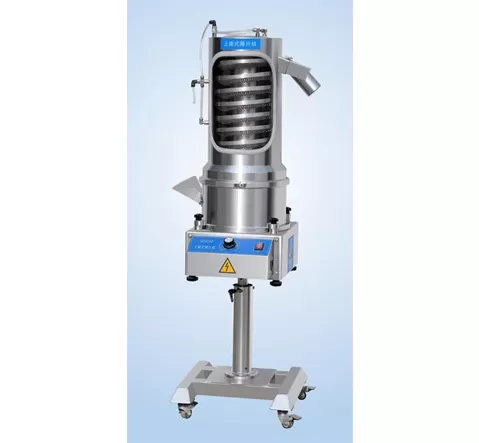

The uphill tablet deduster is mainly used for the functions of dust removal, grinding and lifting of tablets. It can be used in-line with different models of tablet presses, metal detectors, and vacuum cleaners. The machine is widely used in pharmaceutical, food, chemical, electronics and other industries, and is an indispensable and important production equipment.
Technical Parameters | |||
Model: SZS230 | |||
Overall size | 570x470x1540mm | ||
Height of material inlet (Can choose according to your demands) | 670-840mm | 720-840mm | 819-1009mm |
Height of material outlet (Can choose according to your demands) | 893-1063mm | 943-1063mm | 1043-1233mm |
Dedusting distance | 5500mm | ||
Weight | 70kg | ||
Power supply | 220V 50HZ | ||
Convey capacity | Round tablets Φ5mm Around 300,000 pcs/ h | ||
Power | 150W | ||
Max. current | 1A | ||
Compressed air | 50-100L/min. | ||
Noise within 1 meter | <75db | ||
The tablet dust removal path is long, the automatic turning and polishing, and the sieve efficiency is high.
The production speed can be adjusted to suit the production needs of different tablets.
The production process is intuitive and visual.
Medicine polisher with reliable performance, high efficiency and low noise
It is easy to disassemble and assemble, easy to clean and have no dead ends.
The dust removal effect is good and does not hurt the tablets.
