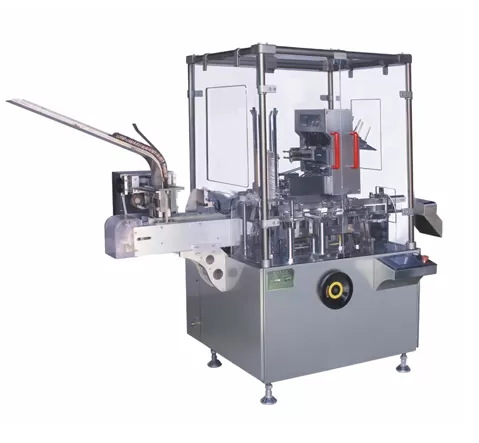

This equipment represents a new model developed based on integrated domestic and foreign advanced technologies. It is a high-technology product incorporating pneumatic-photo-electro-mechanical integration, significantly enhancing equipment performance and working efficiency, enabling rapid encasing while maintaining stable and reliable operation during high-speed running.
This machine is suitable for the automatic feeding of multi-variety, multi-specification products into cartons (either blister or bottle types). Conveniently adjust the automatic feeding structure and randomly set the blister quantity via the touchscreen. Functions include online product feeding and detection, leaflet folding (1-4 folds) and feeding, leaflet detection, carton opening and forming, pushing products and leaflets into the carton, printing batch numbers, and sealing the carton with tuck-in or hot-melt glue sealing devices. It automatically rejects cartons lacking leaflets or products and outputs the finished products.
Item | Parameters | |
Encasing speed | 30-120 boxes /min | |
Box | Quality requirement | 250-350g/㎡【Base on carton size】 |
Dimension range（L×W×H） | （65-125）mm×（30-85）mm×（12-50）mm | |
Leafle | Quality requirement | 60-70g/㎡ |
Unfolded leaflet specification | （80-250）㎜×（90-170）㎜ | |
Fold range | 【1-4】Fold | |
Compressed air | Working pressure | ≥0.6mpa |
Air consumption | 120-160L/min | |
Power supply | 220V 50HZ | |
Main motor power | 0.75kw | |
Machine dimension(L×W×H) | 2150㎜×1140㎜×1800㎜ | |
Machine weight | 1100kg | |

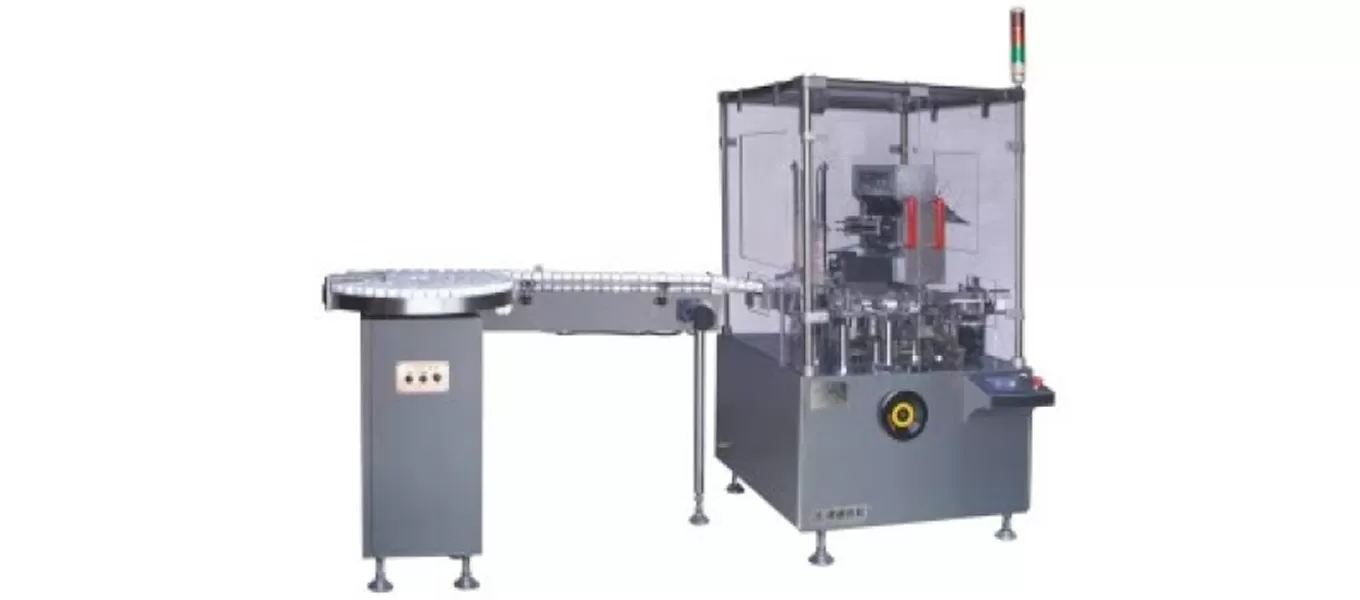

International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
Adopt human-machine operation system.
Automatically stop when machine is overload.
Automatically reject lacking of package product and leaflet.
Automatically display trouble, Alarm and count finished products.
Stable performance,operation is easy.
