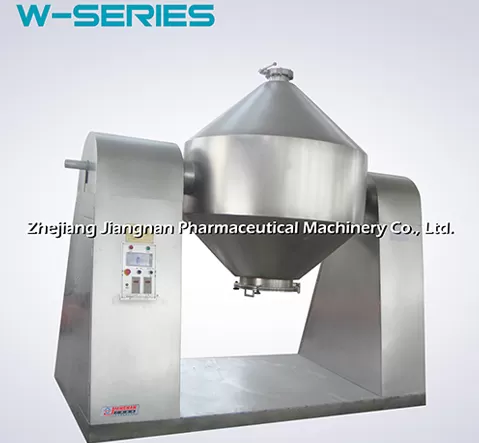

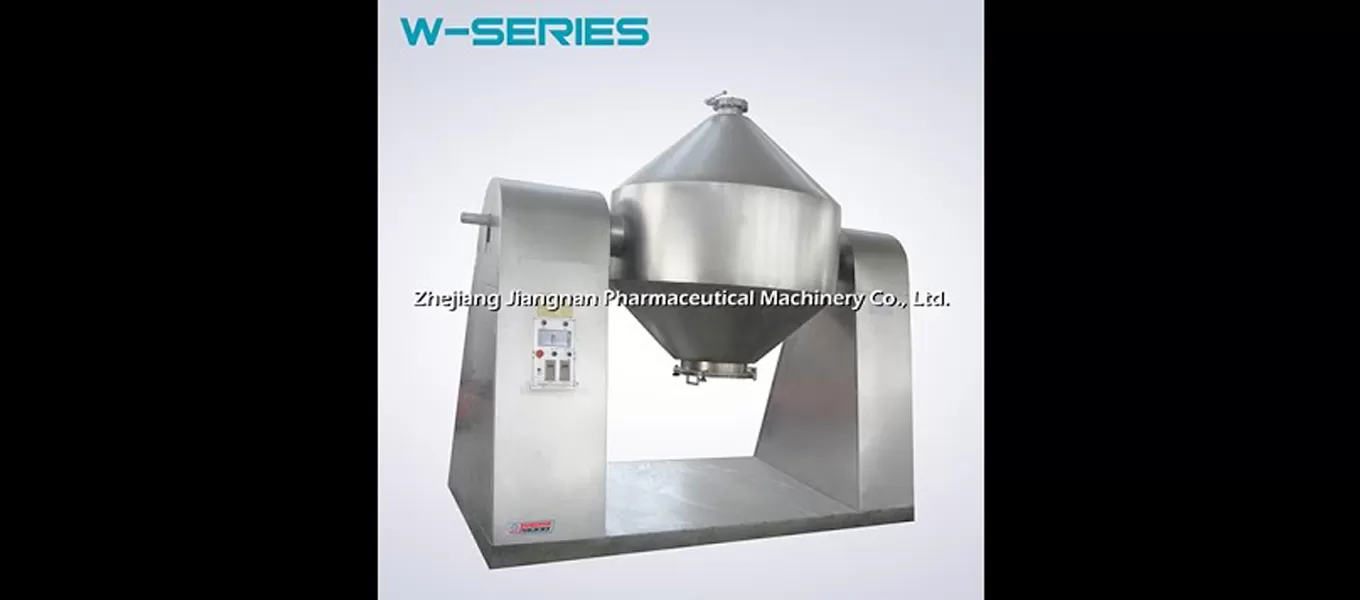

The mixer is widely used in pharmaceutical, chemical, food industries and especially suitable for mixing various solid materials with large volume.
Through the vacuum conveyor for the machine, send the powder or grain state materials into the double-taper container, or send the materials into the container manually. As the container rotates continuously, the materials moves complexly in the container so as to get the uniform mixing.
Model | Gross volume(L) | Working volume(L) | Mixing time(min) | Rotary speed(rpm) | Power(kw) | Weight(kg) |
50 | 50 | 30 | 4-8 | 20 | 0.75 | 160 |
100 | 100 | 60 | 4-8 | 15 | 0.75 | 220 |
200 | 200 | 120 | 4-8 | 12 | 1.1 | 280 |
300 | 300 | 180 | 6-10 | 12 | 1.1 | 380 |
400 | 400 | 240 | 6-10 | 12 | 2.2 | 450 |
500 | 500 | 300 | 6-10 | 12 | 2.2 | 550 |
600 | 600 | 360 | 6-10 | 12 | 3 | 600 |
1000 | 1000 | 600 | 6-10 | 12 | 4 | 700 |
1500 | 1500 | 900 | 6-10 | 12 | 4 | 900 |
2000 | 2000 | 1200 | 6-10 | 12 | 7.5 | 1500 |
2500 | 2500 | 1500 | 6-10 | 12 | 7.5 | 1800 |
3000 | 3000 | 1800 | 6-10 | 7.8 | 7.5 | 2200 |
