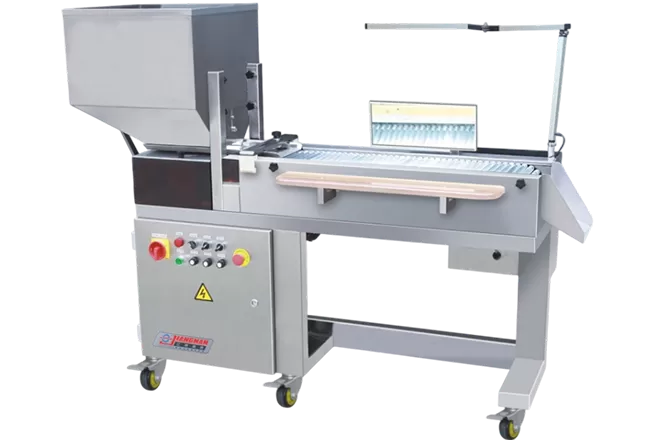

The Medicine Inspection Machine is essential for pharmaceutical quality checks, suitable for hard/soft capsules, tablets, and pills. It uses rotating conveyors to transport drugs steadily, with adjustable speed and 360° flipping for no inspection blind spots . Equipped with adjustable lighting and mirrors, it aids visual detection of defects like shape anomalies, dust, impurities, and integrity issues . Made of stainless steel, it has a handheld vacuum rejector, meets GMP standards, and cuts cross-contamination risks .
Medicine to be used | Capsule 00#-4# and pills, Min. tablet diameter more than 3mm, soft capsules |
Capacity | Max. 120000 pcs/hour or About 50kgs/Hour |
Power supply | 220V 50HZ or 110V, 60Hz. |
Output | 0.6KW |
Overall dimensions | 1400x650x1250mm ( LxWxH ) |
Weight | 180KG |

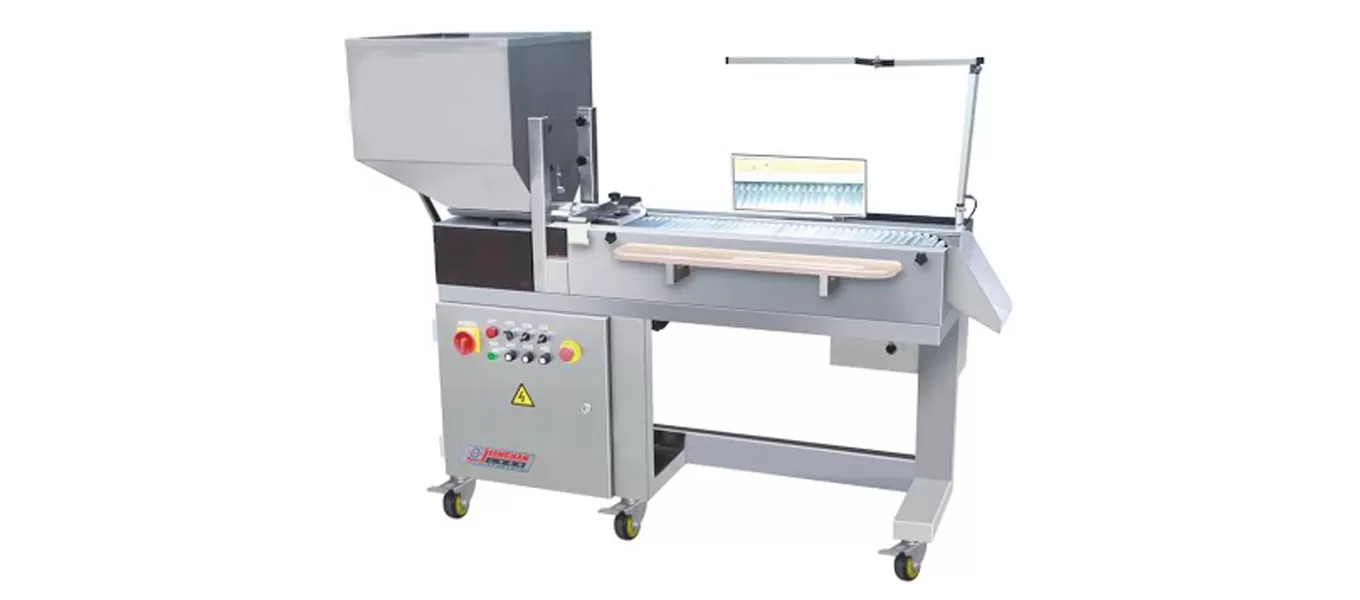

The whole machine is made of stainless steel, it can reduce contact between operator and drug and is up to GMP standard
It is convenient for artificial inspection by stepless speed regulation of drug turning and conveying
With the function of static electricity elimination, it can prevent and reduce the static electricity of drug efficiently
With simple and easy operation, it can reduce labor intensity and raise working efficiency greatly.
The turning speed and checkout speed of capsules, tablets are of independent stepless timing, the complete process of checking has no dead corner and hidden area.
It’s convenient for operators to eliminate unqualified material medicine by handle vacuum sunk nozzle, decreasing the direct touch between hands and medicine.
Inspecting shaft adopts FDA accorded apparent plexi-glass, which results in good effect for hard capsules or soft capsules while opening the bottom lamp. It’s optional to choose S.S. GMP accorded inspecting shaft in place.
