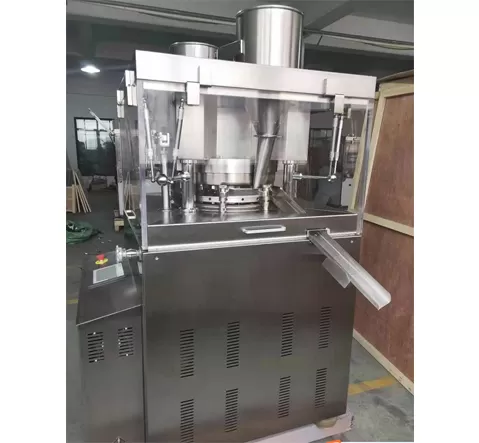

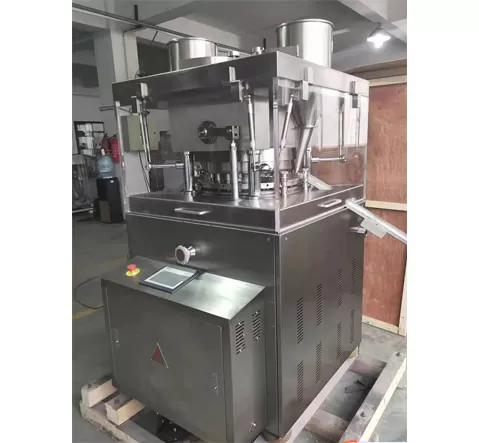

That state-of-the-art High Speed Rotary Press Machine represents the pinnacle of current industry innovation, developed and perfected by our factory based on cutting-edge domestic and international technology. Boasting exceptional speed and high capacity, it excels at pressing diverse tablet shapes, both standard and irregular. This machine stands as the premier choice for large-scale production within the Pharmaceutical, Chemical, Foodstuff, Plastic, and Electronic industries.
The machine seamlessly integrates four core operational stages: (1) Feeding, (2) Filling, (3) Pressing tablets, and (4) Tablets output. This continuous, automated process ensures straightforward operation while reliably handling both filling and tablet formation.
Model | ZP-33F |
Quantity of punch dies (Set) | 33 Sets |
Maximum tablet pressing force (KN) | 80 |
Maximum punching depth (mm) | 17 |
Maximum tablet diameter (mm) | 20 (irregular 16) |
Maximum tablet thickness (mm) | 7 |
RPM | 16-36r/min |
Maximum productivity | 50000-133000 tablets/hour |
Power of main motor (kW) | 380V, 50HZ, 3KW (220V 60HZ) |
Overall Dimension (mm) | 1300x1200x1750 |
Weight of main machine (kg) | 1500 |

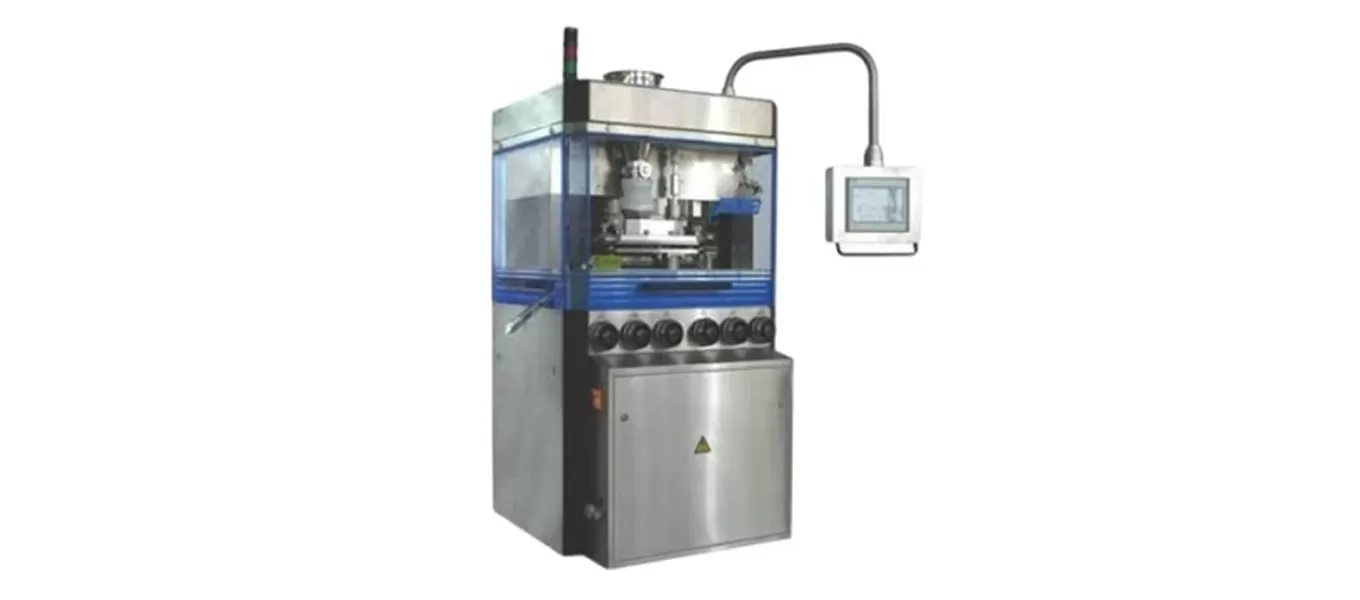

The machine features a fully enclosed structure, offering advantages including a visually appealing design, high operational efficiency, and lower energy consumption.
It is equipped with Plexi-glass perspective windows for observing tablet production on each one, simplifying maintenance.
It adopts an imported frequency timing system paired with a hydraulic system.
Overload protection is included.
