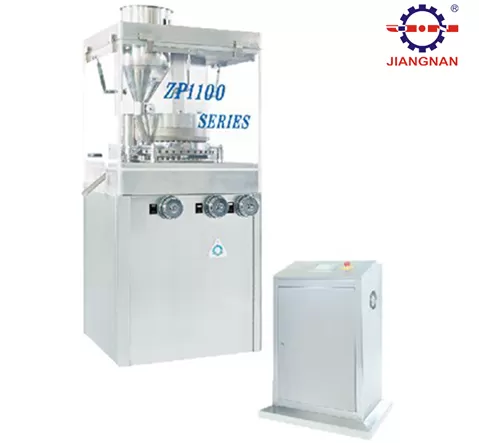

ZP1100 Series Rotary Tablet Presses offer mid-range mass production capacity and are extensively employed within the pharmaceutical, herbal, chemical, and food industries to produce a wide range of round tablets and other irregular shapes.
The ZP1100 series design is robust, durable, and highly efficient. Most parts are interchangeable across the series, ensuring straightforward operation, effortless maintenance, and simple spare.
All material-contact parts and the machine's overall exterior are crafted from premium stainless steel to meet GMP Standard requirements. Custom tablet engraving is readily available upon request.
Model | ZP1139 | ZP1136 | ZP1129 | ZP1124 | |
Station | 39 | 36 | 29 | 24 | |
Standard for P/D | IPT | ||||
Max. main pressure (kn) | 80 | ||||
Max. Pre-pressure (kn) | 15 | ||||
Max. filling depth (mm) | 18 | ||||
Max. diameter of tablet (mm) | 11 | 13 | 18 | 22 | |
Rotary speed of turret (rpm) | 65 | ||||
Max capacity (tab/h) | 152100 | 140400 | 113100 | 93600 | |
Powder of the main motor (kw) | 4 | ||||
Height of the main machine | Without hopper | 1650 | |||
With hopper | 1800 | ||||
Area to occupy (mm) | 890X820 | ||||
Weight of the main machine (kg) | 1400 | ||||
Electric box | Area to occupy(mm) | 600X370X900 | |||
Weight (kg) | 50 | ||||

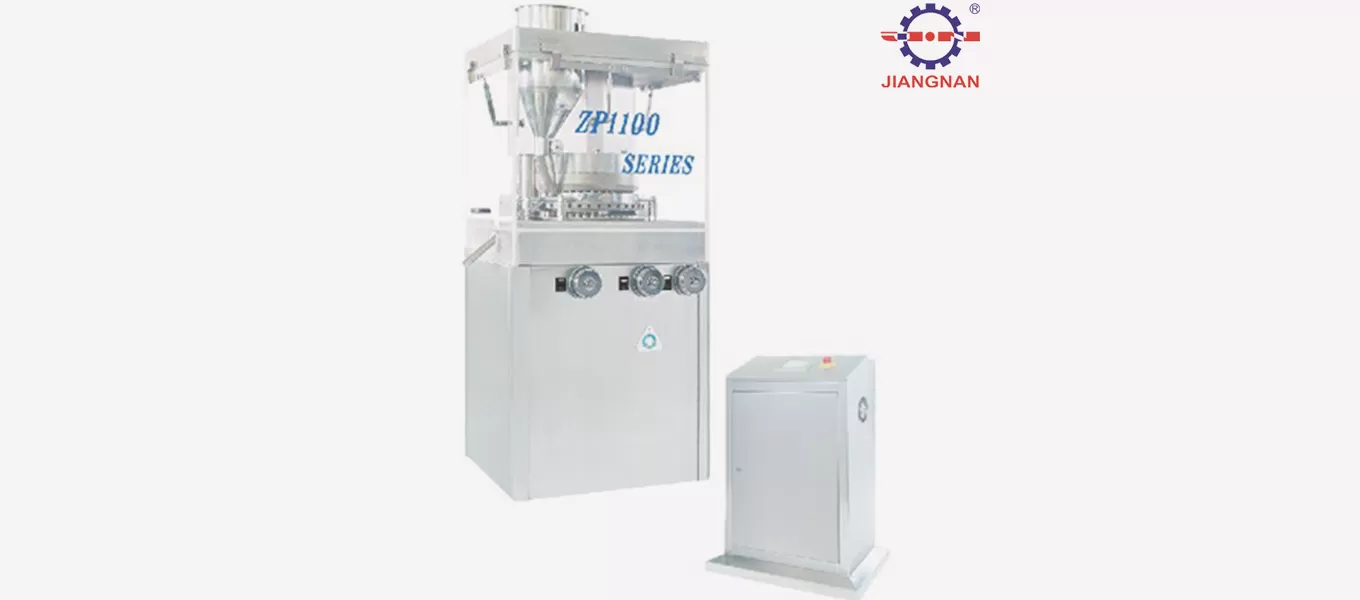

Pre-Compression and Main Compression System
Dedicated Color PLC Touch Panel Control Unit
Comprehensive Safety Protection System
Programmable Main Compression Upper Limit
Instantly Displays Average Compression Value
Precision Upper Punch Protection Sensor System
The Most Economical, High-Quality Press in Its Class
