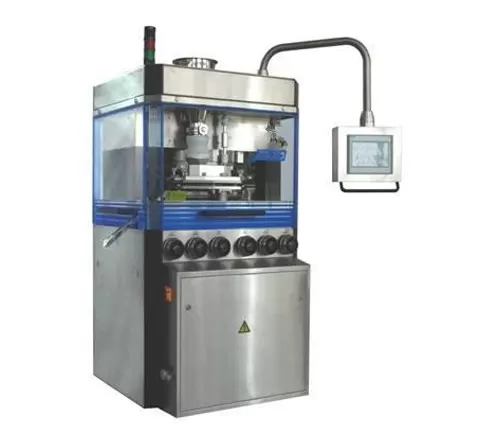

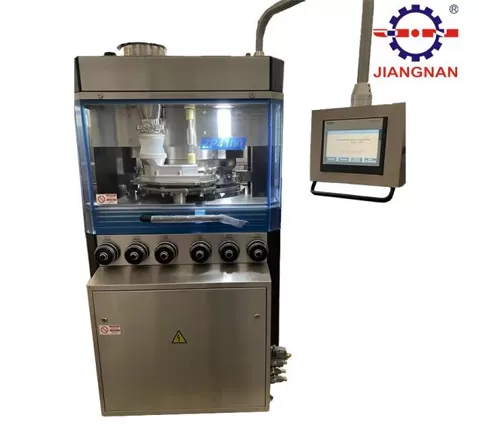

The ZP4100 Rotary Tablet Press is a versatile series extensively employed across the pharmaceutical, food, chemical, and electronic industries. It expertly produces diverse tablet forms, including standard round tablets, complex irregular shapes, and intricately double-side engraved tablets.
Model | ZP4161 | ZP4157 | ZP4147 | ZP4139 |
Station | 61 | 57 | 47 | 39 |
Standard for P/D | TSM | |||
Max. main pressure (kn) | 100 | |||
Type of tooling | TSM 1’ (EU 1’) D | TSM 19 (EU 19) B | TSM 19 (EU 19) BB | EU 19 BBS |
Max. Pre-pressure (kn) | 30 | |||
Max. filling depth (mm) | 18 | |||
Max. dia of tablet (mm) | 11 | 14 | 18 | 25 |
Rotary speed of turret (rpm) | 48 | |||
Max capacity (tab/h) | 351360 | 320328 | 270720 | 224640 |
Powder of the main motor (kw) | 7.5 | |||
Height of the main machine | 2160mm | |||
Area to occupy (mm) | 1300mm x 1100mm | |||
Weight (kg) | 3000 | |||
Operates at high speed with a convenient double-sided outlet.
Delivers exceptional compression power, offering maximum main compression capability of 100KN and pre-compression capability of 30KN.
Ensures compliance with GMP standards through its compact construction, facilitating effortless operation, cleaning, and maintenance.
Features a high-quality Human-Machine Interface (HMI) that clearly displays tablet control and filling depth settings.
Integrates an automatic central lubrication system, guaranteeing precise and reliable oil supply control.
Boasts a force feeder designed for easy assembly and disassembly.
